A Guide to Selecting the Right Hydraulic Quick Couplers & Valves

As someone who works with hydraulic systems, I know how crucial it is to choose the right components. Hydraulic Quick Couplers & Valves are essential for efficient and safe operations, whether you're in construction, agriculture, or industrial manufacturing. Making the right choices ensures reliable connections, prevents leaks, and extends the life of your equipment. In this guide, I'll walk you through everything you need to know to select the best Hydraulic Quick Couplers & Valves for your specific needs.

Key Takeaways

• Understand the Basics: Know the difference between hydraulic and pneumatic systems, as their couplers and valves are not interchangeable due to vast differences in operating pressure and fluid medium.
• Match Coupler to Application: Select the right type of coupler—such as flat face for cleanliness, JIC for high-pressure reliability, or screw-to-connect for security—based on your specific needs.
• Critical Selection Factors: Always consider pressure rating, flow rate, fluid compatibility, temperature, and material when choosing a coupler to ensure safety and system integrity.
• Prioritize Cleanliness: Contamination is a primary cause of hydraulic system failure. Proper installation and routine maintenance, including cleaning couplers and using dust caps, are essential for longevity.
• Safety and Reliability: Correctly chosen and maintained couplers reduce downtime, prevent dangerous high-pressure leaks, and offer long-term cost-effectiveness by protecting your equipment investment.

Understanding the Fundamentals: Hydraulic Quick Couplers & Valves

Before diving into the selection process, it’s essential to grasp the fundamental concepts of what these components are and how they function within different systems. This foundational knowledge will empower you to make more informed decisions for your specific hydraulic applications.

What are Hydraulic Quick Couplers?

Hydraulic quick couplers, also known as quick-connects or quick disconnects, are fittings that allow for the fast and easy connection and disconnection of hydraulic lines without the need for tools. They are pivotal in systems requiring frequent attachment changes, such as those found on construction excavators or agricultural tractors. Their primary purpose is to streamline operations, minimize downtime, and ensure a secure, leak-free seal for fluid transfer.

Components and Functionality

A hydraulic quick coupler consists of two primary parts: the male half (plug) and the female half (socket). When connected, internal valves in both halves open to allow hydraulic fluid to flow. When disconnected, these valves automatically close to prevent fluid spillage and block contaminants from entering the clean hydraulic system.

Here is a breakdown of the core components:

• Coupler Body: The main structure, typically made of durable materials like steel or stainless steel to withstand high pressures and harsh working conditions.
• Valves: Internal mechanisms (e.g., poppet or flat-face valves) that control the flow of hydraulic fluid. They open upon connection and close upon disconnection.
• Seals and O-Rings: Critical for creating a leak-proof connection. These are made from materials compatible with hydraulic fluids and capable of withstanding system pressures and temperatures.
• Locking Mechanism: This feature, often using ball bearings or a retractable sleeve, secures the male and female halves together, preventing accidental disconnection under pressure.
• Dust Caps and Plugs: Protective covers used when the couplers are disconnected to prevent dirt, moisture, and other contaminants from entering the hydraulic system.

Benefits Across Industries

The ability to quickly and securely manage hydraulic connections offers significant advantages across numerous sectors. These benefits directly contribute to increased productivity, safety, and equipment longevity.

Industry	Primary Benefits
Construction	Rapidly switch between attachments like hammers, buckets, and grapples, minimizing machine downtime and maximizing operational efficiency on site.
Agriculture	Easily connect and disconnect implements on tractors and other farm machinery, speeding up tasks from planting to harvesting.
Manufacturing	Facilitate quick setup and maintenance of hydraulic presses, machine tools, and automated assembly lines, reducing production interruptions.
Forestry	Enable heavy machinery to quickly change between cutting heads, processors, and mulchers in demanding, remote environments.
Military	Provide reliable and fast connections for fuel delivery lines and hydraulic systems in military vehicles and equipment.

The core advantages in all these applications include reduced downtime during equipment changes, enhanced operator safety by minimizing exposure to hydraulic fluid, and preventing environmental contamination from spills.

Hydraulic Systems vs. Pneumatic Systems: Key Differences for Couplers and Valves

While both hydraulic and pneumatic systems transmit power, they do so using different mediums, which fundamentally impacts the design and selection of their respective couplers and valves.

Fluid Medium and Pressure Handling

The most significant difference lies in the fluid medium and operating pressure. Hydraulic systems use incompressible liquids, typically oil, to transmit force, operating at very high pressures—often ranging from 1,000 to over 10,000 PSI (pounds per square inch). In contrast, pneumatic systems use compressible gas, usually filtered air, at much lower pressures, typically between 80 and 120 PSI.

This vast pressure difference means hydraulic couplers must be engineered for extreme force, whereas pneumatic couplers are designed for lower-pressure, higher-velocity airflow.

Material Composition and Sealing Mechanisms

The demands of high pressure and the chemical properties of hydraulic fluids dictate the materials used for hydraulic couplers. They are commonly made from high-strength materials like carbon steel, stainless steel, or brass to prevent failure under extreme force. Sealing mechanisms in hydraulic systems, such as durable O-rings and backup rings, are made from materials like Nitrile or Viton, which can resist chemical breakdown from oil and prevent leaks under high pressure.

Pneumatic fittings, operating at lower pressures, can be made from lighter materials like aluminum, plastic, or brass. Their seals are designed to manage airflow and are typically made from softer, more flexible materials, as a small air leak is less hazardous than a high-pressure hydraulic fluid leak.

Advantages and Applications of Each

The distinct characteristics of hydraulic and pneumatic systems make them suitable for different tasks.

Hydraulic Systems:

• Advantages: Capable of generating immense force and providing precise control, ideal for heavy lifting and high-power applications. Hydraulic fluid also acts as a lubricant and helps dissipate heat.
• Applications: Heavy construction machinery (excavators, bulldozers), agricultural equipment (tractors, combines), industrial presses, and vehicle braking systems.

Pneumatic Systems:

• Advantages: Systems are generally faster, cleaner (since air is the medium), and components are less expensive. They are well-suited for rapid, repetitive movements.
• Applications: Industrial automation (robotics, assembly lines), packaging machinery, power tools (nail guns, impact wrenches), and medical equipment.

Because of these fundamental differences, hydraulic and pneumatic couplers are not interchangeable. Using a pneumatic coupler in a hydraulic system would lead to catastrophic failure due to the immense pressure difference.

Exploring Types of Hydraulic Quick Couplers & Valves

The hydraulic industry offers a wide array of quick couplers, each designed with specific features to meet different performance requirements. Understanding the most common types is the first step in narrowing down the best option for your hydraulic system.

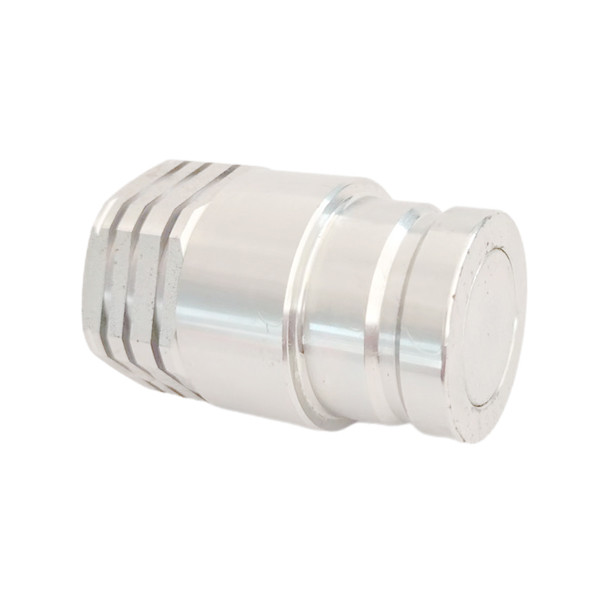

Flat Face Couplers: The Clean and Efficient Choice

Flat face couplers are considered a premium choice, particularly in applications where cleanliness and preventing fluid loss are critical. They are engineered to comply with ISO 16028 standards, ensuring interchangeability between manufacturers who adhere to this specification.

Design and Contamination Control

The defining feature of a flat face coupler is its flush, or "flat," mating surfaces on both the male plug and female socket. This design offers several key advantages for contamination control:

• Minimal Spillage: During disconnection, only a very thin film of oil is exposed, resulting in near-zero fluid loss. This keeps the worksite clean, enhances safety by preventing slip hazards, and protects the environment.
• Prevents Contaminant Ingression: The smooth, non-recessed surfaces are easy to wipe clean before connection. This drastically reduces the risk of introducing dirt, dust, or moisture into the hydraulic system, which is a leading cause of component failure.
• Reduces Air Inclusion: The design minimizes the amount of air that can enter the system upon connection, ensuring more stable hydraulic performance.

Applications in Demanding Environments

Due to their clean and non-drip design, flat face couplers are the standard in environments where hydraulic fluid contamination or spillage is unacceptable. Common applications include:

• Construction Equipment: Especially on skid steer loaders and excavators where frequent attachment changes occur in dusty, dirty conditions.
• Agricultural Machinery: Used to prevent soil and crop contamination from hydraulic fluid leaks.
• Industrial Manufacturing: Ideal for indoor applications where a clean and safe floor is paramount.
• Forestry and Mining: Valued for their durability and ability to keep sensitive hydraulic systems clean in harsh, debris-filled environments.

JIC Fittings: Versatility and High-Pressure Performance

JIC (Joint Industry Council) fittings, also known as SAE J514 fittings, are one of the most popular types of hydraulic connectors in North America. Although they are technically fittings rather than quick couplers, they are often used in conjunction with them and are essential to understand. They are renowned for their reliability in high-pressure applications.

Understanding the 37° Flare Seal

The sealing mechanism of a JIC fitting is a metal-to-metal contact between the 37° flared end of the male fitting and the 37° conical seat inside the female fitting. The threads on a JIC fitting do not create the seal; their role is purely mechanical, drawing the two flared surfaces together to form a tight, high-pressure connection. This design makes them highly reliable and capable of withstanding pressures up to 10,000 PSI in some cases.

It's crucial not to confuse JIC 37° fittings with AN (Army-Navy) fittings. While dimensionally identical, AN fittings have tighter tolerances and are not functionally interchangeable with JIC fittings.

Common Applications and Benefits

JIC fittings are prevalent across various industries due to their versatility and excellent performance under pressure.

• Benefits:
  • High-Pressure Reliability: The metal-to-metal seal is extremely robust.
  • Wide Availability: JIC fittings are common and readily available in many sizes and materials.
  • Reusability: They can be connected and disconnected multiple times without significant deformation or loss of sealing integrity.
  • High-Temperature Suitability: The absence of an O-ring in the primary seal makes them ideal for high-temperature applications.
• Applications:
  • Fluid power systems in agriculture, construction, and manufacturing.
  • High-pressure fuel lines in military and aerospace applications.
  • Flexible plumbing systems where a secure connection to a hose is needed.

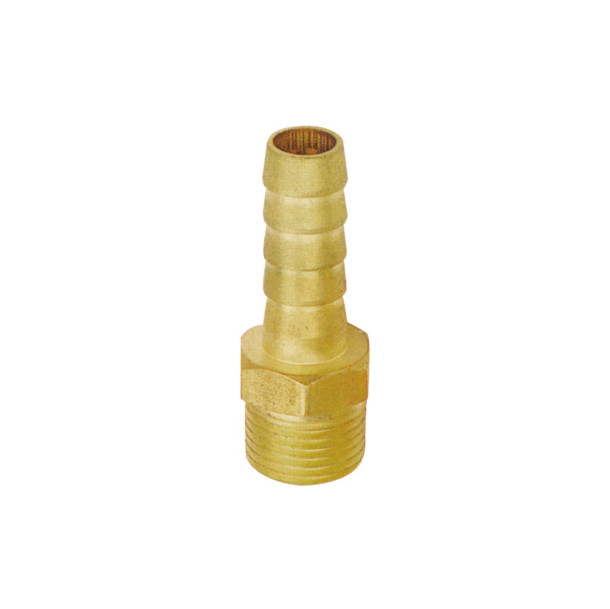

Other Common Hydraulic Quick Couplers & Valves

Beyond flat face and JIC styles, several other types of couplers serve different operational needs.

Push-to-Connect and Screw-to-Connect Options

• Push-to-Connect: These couplers allow for fast, one-handed connection by simply pushing the male plug into the female socket until the locking mechanism clicks into place. They are excellent for applications where speed is the top priority but are generally used in lower- to mid-range pressure systems.

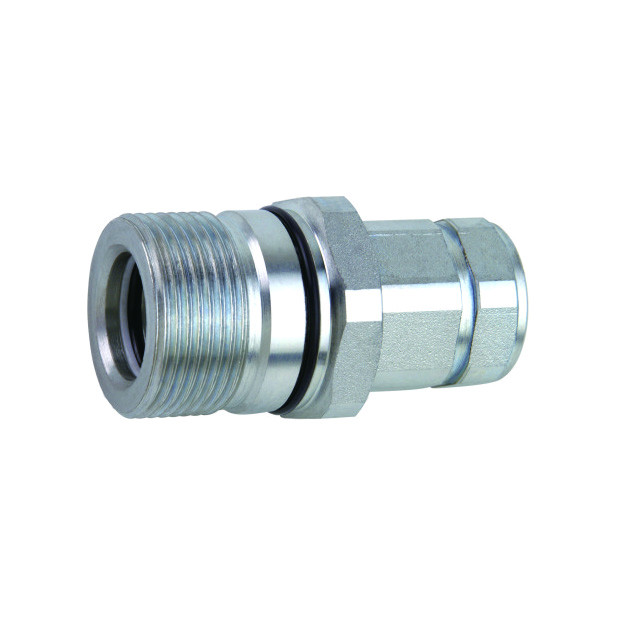

• Screw-to-Connect (Thread-to-Connect): These couplers use a threaded sleeve to connect and disconnect. This process is slower but provides an incredibly secure and robust connection that can withstand very high pressures, pressure impulses, and residual pressure in the line. They are often the go-to choice for heavy-duty applications like demolition attachments and high-flow forestry equipment.

ISO 7241 Series A & B and Ball/Pin Locking Couplers

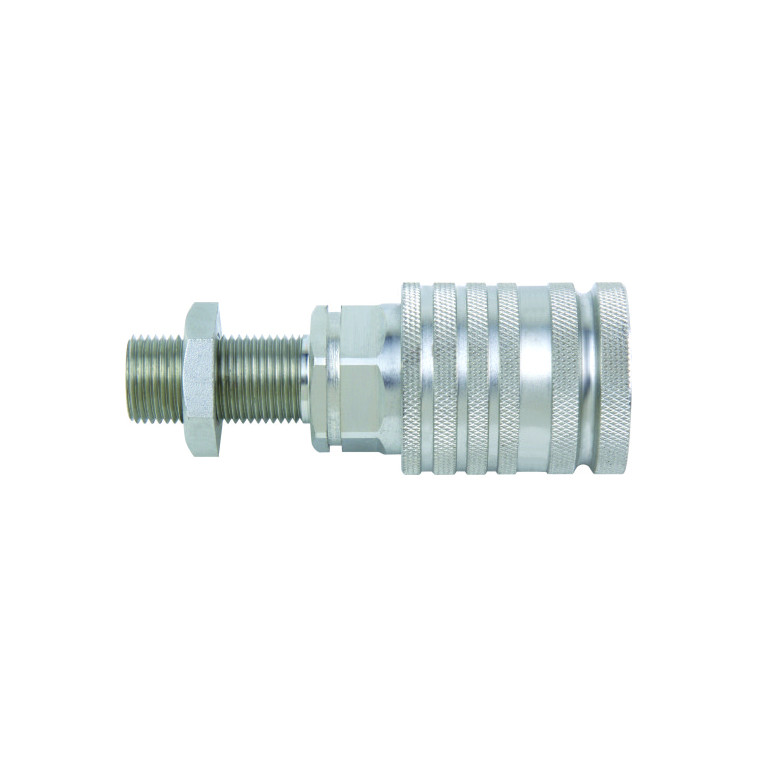

• ISO 7241 Series A ("Ag Couplers"): These poppet-valve style couplers are a global standard, primarily used in agricultural applications. They are designed for interchangeability under the ISO 7241-A standard.
• ISO 7241 Series B ("Industrial Couplers"): Also a poppet-valve style, this series is widely used in industrial applications in North America. While they look similar to Series A, they are not interchangeable. Attempting to connect them will result in a poor seal or no connection at all.
• Ball/Pin Locking Couplers: This describes the internal locking mechanism. Most modern couplers use a ball-lock design, where several steel balls expand into a groove on the male plug to secure it. A pin-lock mechanism uses solid pins instead of balls and is another common design for securing the connection.

Critical Factors in Selecting the Right Hydraulic Quick Couplers & Valves

Choosing the correct hydraulic coupler goes beyond simply identifying a type. It requires a thorough evaluation of your system's specific demands and the operational environment. Making the wrong choice can lead to leaks, system failure, or even dangerous safety hazards.

Assessing Application Needs and Environmental Conditions

The first step is a comprehensive assessment of where and how the coupler will be used.

Pressure, Flow Rate, and Fluid Compatibility

These three factors are non-negotiable and must be correctly matched to your system's specifications.

• Pressure: The coupler's pressure rating must meet or exceed the maximum operating pressure of your hydraulic system, including any potential pressure spikes. Using an under-rated coupler can lead to catastrophic failure and high-pressure fluid injection injuries.
• Flow Rate: Measured in gallons per minute (GPM), the flow rate determines the required internal diameter of the coupler. A coupler that is too small for the system's flow rate will create a bottleneck, leading to a pressure drop, heat generation, and reduced system efficiency.
• Fluid Compatibility: You must ensure that the coupler's body material and, more importantly, its seal material are compatible with the type of hydraulic fluid being used (e.g., mineral oil, synthetic-based fluid, water-glycol). Incompatible materials can cause seals to swell, shrink, or degrade, leading to leaks and eventual failure.

Temperature Range and Corrosion Resistance

Environmental conditions play a huge role in the longevity and reliability of a coupler.

• Temperature Range: Every coupler has a specified operating temperature range, largely dictated by its seal material. Operating outside this range—either too hot or too cold—can cause seals to become brittle or overly soft, compromising their ability to maintain a seal. Always match the coupler to the ambient temperature and the fluid's operating temperature.
• Corrosion Resistance: For applications exposed to moisture, salt spray (marine environments), or corrosive chemicals, material selection is key. While standard steel is common, materials like stainless steel, brass, or couplers with special protective coatings (e.g., zinc-nickel plating) offer superior corrosion resistance and will last significantly longer in harsh conditions.

Material, Size, and Thread Type Compatibility for Hydraulic Quick Couplers & Valves

Once you've defined your operational needs, the next step is to correctly identify and measure the fittings to ensure a perfect match.

Identifying Manufacturer Markings and Standards

Most reputable manufacturers stamp identifying information directly onto the body of the coupler. These markings can include:

• Manufacturer’s name or logo
• Part number or series name
• Pressure rating (e.g., "10,000 PSI")
• Material type (e.g., "SS" for stainless steel)
• Applicable standards (e.g., "ISO 16028")

Examining these markings is the quickest and most reliable way to identify what you have and find a compatible replacement. Faded or worn markings can make identification challenging.

Measuring for Accurate Fit: Body and Thread Size

If markings are not visible, you will need to measure the coupler manually.

• Body Size: The body size of a coupler typically corresponds to the nominal inside diameter (ID) of the hydraulic hose it’s designed for. This is often expressed in inches or as a "dash size."
• Thread Size and Type: Identifying threads can be tricky, as many look similar. You will need two tools: a set of calipers to measure the thread diameter and a thread pitch gauge (also called a thread comparator) to determine the number of threads per inch or the distance between threads. Common thread types in hydraulic systems include NPT (National Pipe Taper), JIC (UNF threads), and BSP (British Standard Pipe). Using the wrong thread type will result in a leaky and insecure connection.

Single Ferrule vs. Double Ferrule Fittings for Hydraulic Quick Couplers & Valves

While these are compression fittings rather than quick couplers, they are often integrated into hydraulic systems that use quick couplers, making them relevant to the overall system design. Their function is to create a permanent or semi-permanent connection to a tube.

Design Differences and Performance Implications

• Single Ferrule Fittings: These use a single ferrule that performs two functions: it bites into the tube to create a seal and simultaneously grips the tube to hold it in place. The design is simpler and effective for many applications.
• Double Ferrule Fittings: This design uses two ferrules. The front ferrule is responsible for creating the seal against the fitting body and the tube's outer diameter. The back ferrule grips the tube, providing strong mechanical holding power and vibration resistance. This separation of functions generally yields a more reliable connection in demanding conditions.

Choosing for Pressure and Reusability

The choice between single and double ferrule designs often comes down to the demands of the application.

Feature	Single Ferrule	Double Ferrule
Pressure Handling	Good for medium to high pressures.	Excellent for high pressures, vacuums, and high-vibration environments.
Vibration Resistance	Good	Superior, due to the two-ferrule gripping action.
Reusability	Can be less reliable upon reassembly as the ferrule has already deformed.	Generally offers better reusability and can be reassembled multiple times.
Typical Use Case	General industrial applications.	Critical process lines, instrumentation, high-vibration systems (e.g., mobile equipment).

For most extreme-pressure or high-vibration hydraulic systems, a double ferrule fitting is often the preferred choice for its enhanced reliability and secure grip.

Installation and Maintenance of Hydraulic Quick Couplers & Valves

Properly selecting a hydraulic coupler is only half the battle. Correct installation and consistent maintenance are essential to ensure the coupler performs as designed throughout its service life, guaranteeing both safety and efficiency.

Best Practices for Installation

A flawed installation can compromise even the highest quality coupler, leading to leaks, premature wear, and potential safety hazards.

Ensuring Proper Sealing and Connection

Follow these steps to ensure a secure, leak-free connection every time:

1. Depressurize the System: Before attempting to connect or disconnect any hydraulic component, always ensure the system is completely depressurized. Trapped pressure can make connection impossible and can be extremely dangerous if it releases unexpectedly.
2. Clean All Components: Thoroughly wipe the male and female ends of the coupler with a clean, lint-free cloth before connecting them. This prevents contaminants from entering the hydraulic system, which can damage seals and other sensitive components.
3. Inspect Seals and Mating Surfaces: Do a quick visual inspection for any nicks, scratches, or signs of wear on the seals and metal surfaces. A damaged O-ring is a common cause of leaks and should be replaced before installation.
4. Align and Connect: Align the male and female halves properly to avoid side-loading the connection. For push-to-connect types, push firmly until you hear or feel the locking sleeve click into place. For screw-to-connect types, tighten the threads according to the manufacturer's recommendations, being careful not to cross-thread or over-tighten.
5. Perform a Pressure Test: After installation, slowly pressurize the system and visually inspect the connection for any leaks.

Avoiding Common Installation Mistakes

Many coupler failures are due to simple, avoidable errors during installation.

• Mismatched Components: Never try to force a connection between different series or brands of couplers unless they are certified as interchangeable (e.g., adhering to ISO standards).
• Cross-Threading: This is a common mistake with screw-to-connect types. It damages the threads and prevents a secure seal. Always start threading by hand to ensure proper alignment.
• Using Damaged Components: Do not install a coupler that has been dropped or shows visible signs of damage, such as dents or deep scratches.
• Ignoring Torque Specifications: For fittings that require tightening with a wrench, use the manufacturer-specified torque values. Over-tightening can damage threads and seals, while under-tightening will result in leaks.

Routine Maintenance for Longevity of Hydraulic Quick Couplers & Valves

Regular maintenance is the key to extending the life of your couplers and preventing unexpected downtime.

Cleaning and Preventing Contamination

Contamination is the number one enemy of a hydraulic system.

• Use Dust Caps and Plugs: Always install protective dust caps and plugs on couplers as soon as they are disconnected. This is the single most effective way to keep the internal components clean.
• Wipe Before Connecting: Make it a habit to clean couplers before every connection, even if they had dust caps on.
• Store Properly: When not in use, store disconnected hoses and attachments in a clean, dry environment to prevent contamination. Flat face couplers are easier to keep clean compared to poppet-style couplers, where dirt can accumulate in recessed areas.

Replacing Worn Components

Over time, components will wear out, especially seals.

• Regular Inspections: Periodically inspect your couplers for signs of wear and tear, such as leaks, corrosion, cracks, or difficulty connecting/disconnecting. A coupler that is hard to operate may be a sign of internal contamination or damage.
• Seal and O-Ring Replacement: The seals and O-rings are typically the first parts to fail due to age, heat, and pressure cycles. Many manufacturers offer seal replacement kits, which are a cost-effective way to restore a coupler's performance without replacing the entire unit.
• Full Replacement: If the coupler body itself is cracked, severely corroded, or the locking mechanism is damaged, the entire coupler should be replaced immediately to avoid system failure. Continuing to use a damaged coupler is a serious safety risk.

Optimizing Performance with the Right Hydraulic Quick Couplers & Valves

Making a thoughtful and informed decision when selecting, installing, and maintaining your hydraulic quick couplers directly translates to enhanced system performance, improved safety, and better long-term value.

Reducing Downtime and Enhancing Safety

The benefits of using the correct couplers are immediate and significant. High-quality, application-appropriate couplers create reliable, leak-free connections that prevent unexpected failures. This directly reduces equipment downtime needed for repairs and fluid cleanup, boosting overall productivity.

From a safety perspective, secure connections are paramount. A properly specified coupler minimizes the risk of catastrophic failure and the sudden release of high-pressure hydraulic fluid, which can cause severe injection injuries. Furthermore, preventing small leaks and spills helps eliminate slip-and-fall hazards in the work environment, protecting personnel and reducing liability.

Cost-Effectiveness and Long-Term Reliability

While it may be tempting to opt for a cheaper, generic coupler, this approach often leads to higher costs in the long run. Investing in high-quality Hydraulic Quick Couplers & Valves from a reputable manufacturer that match your system's specific requirements is far more cost-effective.

A superior coupler will provide a more reliable seal, last longer, and better protect your entire hydraulic system from contamination and damage. This long-term reliability prevents costly fluid loss, avoids expensive damage to other hydraulic components like pumps and cylinders, and maximizes the operational lifespan of your valuable equipment. The initial investment in the right component pays dividends through sustained performance and peace of mind.

Conclusion

Selecting the right Hydraulic Quick Couplers & Valves is paramount for the efficiency, safety, and longevity of your hydraulic systems. By understanding the different types, considering crucial factors like pressure ratings and material compatibility, and prioritizing proper installation and maintenance, you can ensure optimal performance. These components are not just connectors; they are critical to the integrity and productivity of your entire operation.

I encourage you to carefully evaluate your specific application needs when choosing these vital components. Making informed decisions here will not only minimize potential issues but also maximize your operational productivity and safeguard your investment. By taking the time to match the coupler to the task, you are setting your hydraulic system up for success, ensuring it runs reliably and safely for years to come.

Frequently Asked Questions (FAQs)

Q1: Can I mix and match different brands of hydraulic quick couplers? It is strongly advised not to mix brands unless they are explicitly certified to be interchangeable under a recognized standard, such as ISO 7241-A, ISO 7241-B, or ISO 16028 (for flat face couplers). Even if they look similar, slight dimensional differences can lead to poor sealing, leaks, or the inability to connect or disconnect properly. Always stick with the same brand and series for both halves of the connection for guaranteed performance.

Q2: What is the most common mistake people make with hydraulic couplers? The most common and damaging mistake is attempting to connect or disconnect couplers while there is still pressure in the hydraulic line. This can make the connection impossible, damage the coupler's internal valves, and pose a severe safety risk due to the potential for a sudden, high-pressure release of hydraulic fluid. Always ensure the pressure is fully relieved before handling couplers. Another frequent error is neglecting to clean the fittings before connection, which introduces contaminants into the sensitive hydraulic system.

Q3: How often should I inspect my hydraulic couplers and valves? Inspection frequency depends heavily on the application and environment. For equipment in high-use, dirty, or high-vibration environments (like construction or mining), a daily visual inspection is recommended. Look for leaks, visible damage, or excessive dirt. For less demanding applications, a weekly or monthly check may be sufficient. Regardless of the schedule, any sign of leakage or damage should be addressed immediately.
