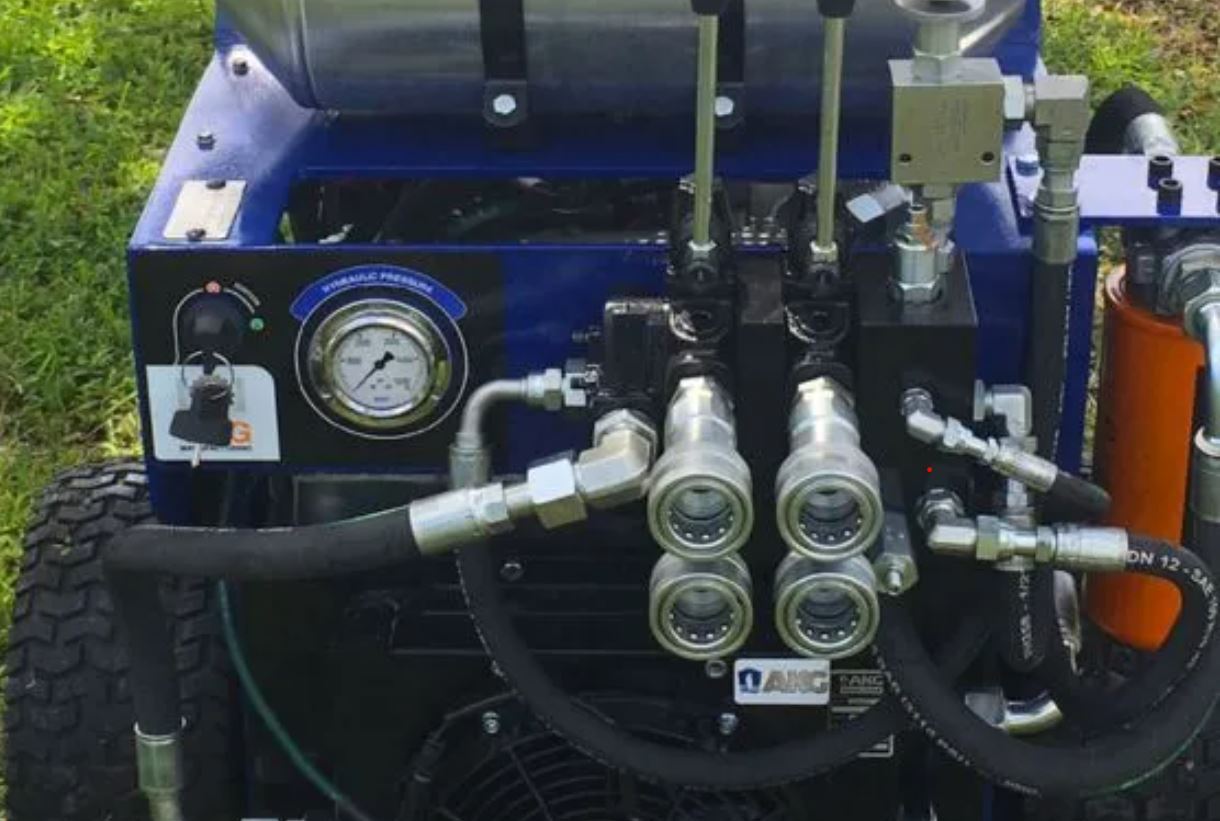

High-Flow Hydraulic Quick Couplers: Revolutionizing Fluid Power Connections Worldwide
Complete Technical Guide for Construction, Agriculture, Mining and Industrial Applications
High-flow hydraulic quick couplers represent the pinnacle of fluid connection technology, enabling rapid, leak-free connections for demanding hydraulic systems across global industries. These specialized couplings are engineered to handle extreme pressures up to 15,000 psi while maintaining maximum flow rates with minimal pressure drop. From massive mining excavators to precision agricultural equipment, high-flow quick couplers have become indispensable components that significantly reduce downtime, enhance operational safety, and improve overall system efficiency. This comprehensive guide explores the technology, applications, and selection criteria for these critical hydraulic components.
What Are High-Flow Hydraulic Quick Couplers?
High-flow hydraulic quick couplers are specialized connection devices designed for rapid, tool-free connection and disconnection of hydraulic fluid lines in systems requiring substantial fluid transfer rates. Unlike standard quick couplers, these components are engineered with larger internal diameters, optimized flow paths, and reinforced construction to handle both high pressure and high volume fluid transmission simultaneously .
The fundamental design principle centers on creating a straight-through, unrestricted flow path that minimizes turbulence and pressure loss. Manufacturers achieve this through precision engineering of internal valve systems and flow channels that maintain circuit efficiency even under demanding operational conditions .
How High-Flow Quick Couplers Work: The Engineering Behind the Connection
The operational mechanism of high-flow hydraulic quick couplers involves a sophisticated interplay of mechanical and hydraulic principles. Most designs incorporate a flat-face sealing system that eliminates fluid spillage during connection and disconnection cycles .
Modern high-flow couplers often feature Connect-Under-Pressure (CUP) technology, allowing safe connection even when residual pressure exists in the system. EHHYDRAULIC's 296 series, for example, utilizes a triple-valve system that relieves internal pressure during connection, enabling hand-tight operation under challenging conditions .
Key Technical Features and Specifications
High-flow hydraulic quick couplers are distinguished by several critical technical characteristics that determine their suitability for specific applications:
Primary Applications Across Global Industries
| Industry Sector | Specific Applications | Key Requirements |
|---|---|---|
| Construction & Heavy Equipment | Excavators, bulldozers, cranes, skid-steer loaders, hydraulic breakers | High pressure resistance, vibration tolerance, quick attachment changes |
| Agricultural Machinery | Tractors, combines, irrigation systems, harvesting equipment | Corrosion resistance, easy field maintenance, compatibility with various implements |
| Mining Operations | Drilling rigs, haul trucks, conveyor systems, processing equipment | Extreme durability, contamination resistance, high-flow capabilities |
| Industrial Manufacturing | Injection molding machines, press systems, automation equipment | Precision connections, minimal leakage, high cycle life |
| Oil & Gas | Drilling equipment, pipeline systems, refinery machinery | Explosion-proof designs, chemical resistance, high-pressure ratings |
Selection Guide: Choosing the Right High-Flow Coupler
Selecting appropriate high-flow hydraulic quick couplers requires careful consideration of multiple technical and operational factors:
Leading Global Manufacturers and Brands
Italian-engineered quick couplers with U.S. manufacturing support. Specializes in flat-face ISO 16028 compliant designs with Connect-Under-Pressure technology. Pressure ratings up to 10,000 psi with extensive customization options .
Global fluid power leader offering HO Series high-flow couplers rated to 15,000 psi. Features chemical nickel plating for corrosion resistance and sleeve-lock safety mechanisms. Widely used in heavy construction and mining equipment .
Specializes in extreme-duty applications with Weatherhead series couplers. Offers high-efficiency flow paths reducing pressure loss by 15-20%. Particularly strong in mining and port equipment applications .
Swiss precision engineering with HCB series high-flow couplings. Features clean-break technology and robust bayonet locks. Maximum pressure of 50 bar with excellent durability in chemical and petrochemical applications .
Maintenance and Operational Best Practices
Proper maintenance ensures optimal performance and extended service life for high-flow hydraulic quick couplers:
Conclusion: The Future of High-Flow Hydraulic Connections
High-flow hydraulic quick couplers have evolved from simple connection devices to sophisticated system components that directly impact operational efficiency, safety, and environmental compliance. As global industries continue to demand higher performance from hydraulic systems, the technology behind these couplers advances correspondingly. Future developments will likely focus on smart connectivity features, enhanced materials for extreme environments, and even greater flow efficiencies. For engineers, maintenance professionals, and equipment operators worldwide, understanding and properly implementing high-flow quick coupler technology represents a critical competency that delivers measurable returns in reduced downtime, improved safety, and optimized system performance across countless industrial applications.
