How to Replace Bobcat Hydraulic Quick Couplers

How to Replace Bobcat Hydraulic Quick Couplers

Summary

Get Maximum Performance from Your Skid Steer Hydraulics. The right Bobcat quick couplers​ are essential for a peak-performing skid steer hydraulic system. They ensure efficient, leak-free operation for your machine and all its attachments.

How to Replace Bobcat Hydraulic Quick Couplers
Get Maximum Performance from Your Skid Steer Hydraulics.

The right Bobcat quick couplers​ are essential for a peak-performing skid steer hydraulic system. They ensure efficient, leak-free operation for your machine and all its attachments. For smooth performance and minimal downtime, remember these three keys:

Understand​ how your hydraulic system and couplers work together.
Maintain​ the system with high-quality, correct couplers.
Choose​ the proper couplings to run every attachment efficiently.

Quick Couplers Used For Powering Attachments

Bobcat Attachments: Unlock Your Skid Steer's Full Potential

The Bobcat skid steer's versatility comes from its extensive attachment lineup. With the right hydraulic system, you can power dozens of specialized tools to tackle any job. Key attachments include:

Buckets

Handle everything from dirt and grain to rocks and construction materials with various bucket types

Wood Chippers

Process branches and tree limbs into mulch efficiently

Excavators & Diggers

Dig trenches up to 48 inches deep, remove stumps, and handle odd-shaped materials

Concrete Tools

Mix, transport, and pour concrete faster than standalone equipment

Land Clearing Attachments

Grapples, forestry cutters, and mowers clear debris, cut vegetation, and maintain large areas

Material Handling

Pallet forks lift heavy loads with precision

Snow Removal

Blades and pushers clear driveways, sidewalks, and uneven surfaces

One Critical Connection:​ All Bobcat attachments rely on the right hydraulic quick couplers for efficient, leak-free operation. Understanding your hydraulic system and maintaining proper couplers is essential for peak equipment performance, no matter which attachments you use.

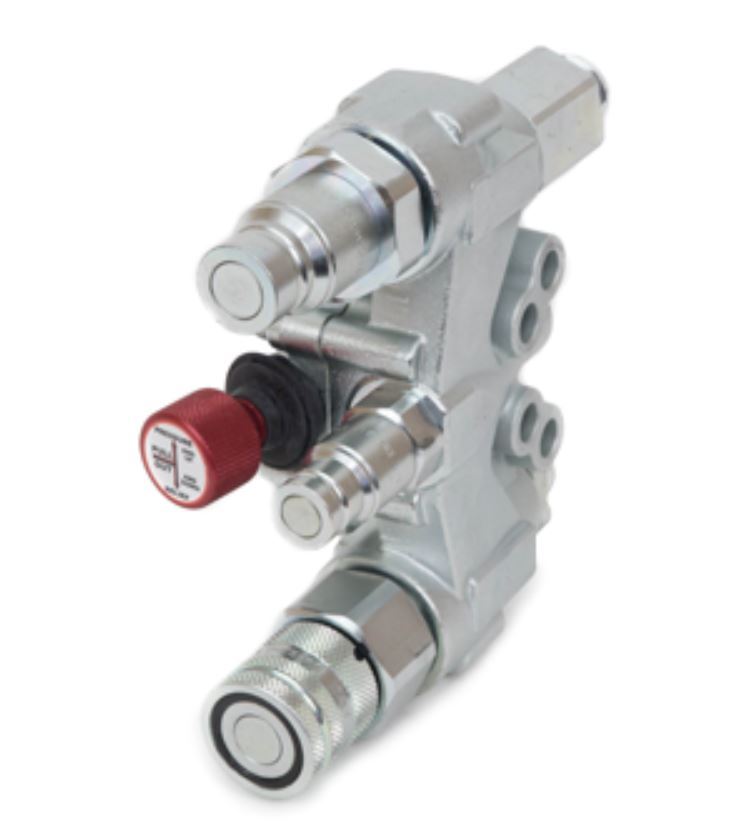

How the Bobcat Hydraulic Coupler System Works

The hydraulic coupling systems on skid steer utility vehicles are very similar across varying makes and models, making it easy to understand how Bobcat hydraulic quick couplers work and how to best replace them. While many hydraulic quick couplers may be compatible with various skid steer and Bobcat equipment, they are not all made the same. Choosing the right Bobcat quick coupler will provide effective, efficient, and leak-free hydraulic fluid control.

Many people want to know what to do with their hydraulic couplers, how to connect them, and what they are for. It is important to know how to connect your skid steer attachments, how quick couplers are set up on your machine and the function of the quick coupling options on the outside of your machine. You should see quick connect coupling options lined up vertically on the outside of your machine.
The first coupler at the bottom, is typically a flat faced female quick coupler which is the pressurized coupler on a Bobcat. The trigger switch from inside the cab sends flow to this pressurized coupler to power your attachment such as a mower, a bucket or another motorized attachment. When the hydraulic flow returns it comes back through the male coupler which is the third one up from the bottom. The male coupler then takes the pressure back into the Bobcat, through the filter system to get re-pumped back through this female pressure coupler.

So, the bottom coupler is the female pressurized coupler which powers all attachments, the third coupler up from the bottom is the male return coupler, and the coupler in between the two is the case drain, which is a 3/8 male flat face coupler. This very important quick coupler takes any excess pressure back to the return line and into the reservoir. This case drain coupler will protect the motor on your attachments from bursting any seals due to built-up pressure. The connection attachments at the top are 14 pin or 8 pin electrical connectors which allow the operator to control additional functions on attachments.

EHHYDRAULIC Offers Bobcat Hydraulic Quick Couplers

Power Your Bobcat with EHHYDRAULIC: The Proven Hydraulic Quick Coupler

For skid steer applications where performance is non-negotiable, EHHYDRAULIC Bobcat hydraulic quick couplers are engineered to outperform. Our comprehensive line provides the reliable, leak-free connection your equipment demands, ensuring maximum uptime and efficiency for every attachment.

Our Skid Steer Quick Coupler Solutions:

Choose the right coupler for your specific needs from our specialized series:

EH 90 Series:​ interchangeable with the Faster 4BD4FH Spare Part Kit and Faster 4BD4FH Accessories. This pioneering cast iron block was the first of its kind to enable the rapid connection and disconnection of attachments for skid steer loaders and similar construction machinery.

EH 70 Series:​ interchangeable with the RE577560 John Deere SCV Breakaway Quick Coupler. This durable coupler is engineered for long-term performance.

EH 78 Series:​ interchangeable with STUCCHI I-IP SERIES, FASTER CPV SERIES, FASTER CNV SERIES, PIONEER 2000 SERIES, PARKER 4200 SERIES, DIXON AG SERIES, HANSEN HA15000 SERIES, SAFEWAY S40 SERIES, DNP PPV1 SERIES, and VOSWINKEL HP SERIES. ISO 7241-1 Series A compliant bulkhead couplings designed for flexible hose connections.

EH 95 Series:​ interchangeable with STUCCHI FIRG SERIES, DNP PLT1 SERIES, PARKER FF SERIES, EATON AEROQUIP FD 89 SERIES, DIXON HT SERIES, HANSEN QA29000 SERIES, and SAFEWAY FFE49 SERIES. The 95 Series, renowned as the original ISO 16028-compliant coupling solution, continues to deliver reliable performance, exceptional durability, and competitive value.

EH 96 Series:​ interchangeable with STUCCHI A SERIES, FASTER FFH SERIES, PARKER FEM SERIES, CEJN X65 SERIES, DIXON HT SERIES, DNP PLT4 SERIES, VOSWINKEL FH SERIES, and GROMELLE 629-A SERIES. The Premier Series Flat Face Couplings, engineered to ISO 16028 interchange standards, deliver exceptional hydraulic performance with higher pressure ratings, optimized flow efficiency, and reduced pressure drop—outperforming both EH 95 Series and competing products.

EH 75 Series:​ interchangeable with HANSEN HA15000 SERIES, PARKER 6600 SERIES, EATON AEROQUIP 5600 SERIES, FASTER ANV SERIES, DNP PAV1 SERIES, STUCCHI BIR SERIES, STUCCHI IRV SERIES, DIXON K SERIES, VOSWINKEL IA SERIES, and SAFEWAY S56 SERIES. The 75 series is a poppet-type quick coupler compatible with ISO 7241-1 "A" standards. Constructed from carbon steel with zinc plating, it ensures global interchangeability and is available in sizes from ¼'' to 2''.

EH 296 Series:​ interchangeable with STUCCHI APM SERIES, PARKER FEC SERIES, FASTER 3FFH SERIES, FASTER 3FFI SERIES, DIXON HTE SERIES, CEJN X64 SERIES, DNP PLK4 SERIES, SAFEWAY FFEC49 SERIES, and VOSWINKEL FU SERIES. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.

EH 297 Series:​ interchangeable with STUCCHI VEP-P SERIES, PARKER FET SERIES, FASTER FHV SERIES, DNP PST4 SERIES, VOSWINKEL FT SERIES, DIXON VEP SERIES, and HOLMBURY HFT SERIES. Engineered for demanding hydraulic systems, the 297 Series provides reliable performance in applications subject to extreme pressure impulses and residual line pressures. The innovative thread-to-connect design significantly reduces wear and prevents brinelling, while the internal valve technology enables safe connection and disconnection even under high residual pressure conditions.

EH 94 Series: interchangeable with PARKER PD SERIES, DIXON PD SERIES, DNP PLD3 SERIES, FASTER DF SERIES, EATON AEROQUIP FD90 SERIES, BRAZIL DYNAMIC DIAGOSTICO SERIES, and HOLMBURY DTP SERIES. Hydraulic pressure measurement couplings featuring ISO 15171-1 compliant flat-face connections. The male component installs directly on hydraulic lines while the female interface connects to gauge instrumentation, enabling precise system pressure monitoring without fluid loss during connection/disconnection.

More Than a Part—A Partnership.


EHHYDRAULIC provides more than just couplers; we provide reliable hydraulic solutions for the most demanding mobile, agricultural, and construction equipment, including excavators, loaders, and backhoes.
As an industry leader, we offer:

A vast selection of standard and custom-designed quick couplers.
Expert process analysis​ to select the perfect coupler for your application.
Multi-coupler plates​ to improve efficiency and safety on complex machinery.

Ready to optimize your Bobcat's performance?

Contact EHHYDRAULIC today to learn more about our skid steer hydraulic solutions and find the right Bobcat quick coupler for you.
