Hydraulic Quick Disconnect Couplers for Equipment Conversions: The Ultimate Guide for Global Operations
Executive Summary
Hydraulic quick disconnect couplers are revolutionizing equipment conversion processes across industries worldwide. These innovative components enable rapid, tool-free connection and disconnection of hydraulic lines, dramatically reducing downtime during equipment changes, maintenance, and attachment swaps. For global operations facing increasing pressure to maximize efficiency and minimize operational costs, understanding and implementing the right quick disconnect solutions can mean the difference between profitability and costly delays. This comprehensive guide explores the critical role of hydraulic quick disconnects in equipment conversions, with particular focus on EHHYDRAULIC's industry-leading Connect-Under-Pressure (CUP) technology that addresses the most common challenges in hydraulic system modifications.
Why Hydraulic Quick Disconnects Are Essential for Equipment Conversions
Equipment conversions—whether retrofitting existing machinery, swapping attachments, or adapting systems for new applications—require efficient hydraulic line management. Traditional threaded connections demand significant time, specialized tools, and skilled labor, creating bottlenecks in operations. Hydraulic quick disconnect couplers solve these challenges through several key advantages:
Dramatic Downtime Reduction
Quick disconnects enable attachment changes in minutes rather than hours. For equipment like skid steers, excavators, and agricultural machinery that frequently switch between implements, this translates to more productive hours and faster job completion.
Enhanced Safety
Properly designed quick disconnects minimize fluid leakage during connection and disconnection, reducing slip hazards and environmental contamination. Advanced flat-face designs virtually eliminate spillage, crucial for industries with strict environmental regulations.
System Integrity Preservation
High-quality couplers maintain hydraulic system pressure and prevent contamination ingress, protecting sensitive components from damage during equipment modifications.
Operational Flexibility
Equipment can be rapidly reconfigured for different tasks without requiring complete hydraulic system redesigns, allowing businesses to adapt to changing market demands.
The Connect-Under-Pressure (CUP) Revolution
One of the most significant advancements in hydraulic quick disconnect technology is the development of Connect-Under-Pressure (CUP) systems. Traditional quick couplers often struggle with residual pressure trapped in hydraulic lines—a common issue during equipment conversions where temperature changes or mechanical forces create pressure buildup.
The Residual Pressure Challenge
When hydraulic fluid heats up or becomes confined without an outlet, it builds pressure that resists reconnection of quick couplings. Research shows that a mere 1°F temperature increase can spike internal pressure by approximately 100 psi in a sealed hydraulic line . This trapped pressure makes connecting standard couplers difficult, dangerous, and sometimes impossible without first depressurizing the system—a time-consuming process that defeats the purpose of quick disconnects.
EHHYDRAULIC's CUP Technology Solutions
EHHYDRAULIC has developed several innovative CUP technologies that enable safe, effortless connections even when pressure exists in the system:

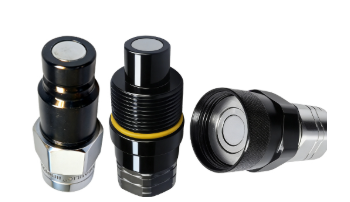

Flat-Face Couplers with Internal Pressure Relief
These couplers feature specially designed valves that automatically relieve pressure during connection, allowing mating even when lines contain residual pressure. The APM and A-HD series exemplify this technology, providing leak-free performance in demanding applications.
Thread-to-Connect Flat-Face Couplers
For applications experiencing extreme pressure impulses or high residual pressure, EHHYDRAULIC's 297,299 series utilize a threaded connection mechanism that provides mechanical advantage to overcome resistance while maintaining flat-face sealing benefits.
Multi-Coupling Plate Systems

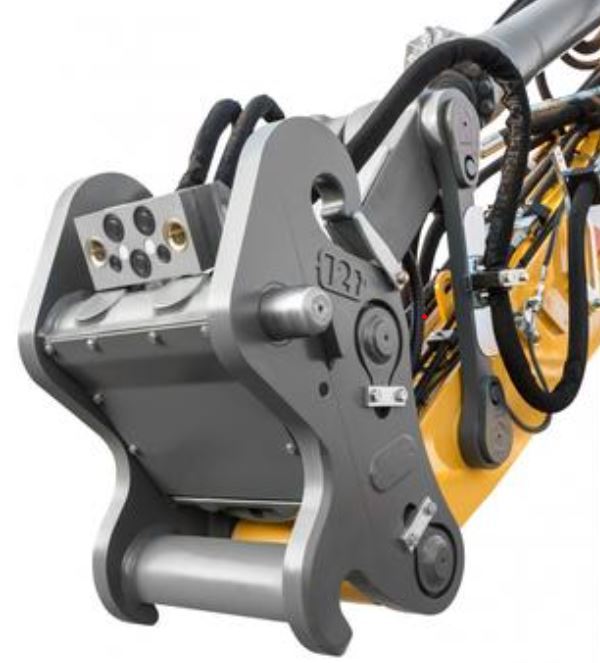

BM3 and DP series plates allow simultaneous connection of multiple hydraulic lines with a single motion, dramatically reducing conversion time for equipment with complex hydraulic circuits.
Saturn Block™ Residual Pressure Relief Manifolds
This innovative system provides centralized pressure relief for multiple lines, ideal for complex equipment conversions where multiple attachments require frequent swapping.
Tangible Benefits of CUP Technology
- Reduced Downtime: Eliminate time-consuming pressure relief procedures before connections
- Improved Operator Safety: Minimize risky workarounds and potential fluid injection injuries
- Longer Component Life: Prevent damage to coupler seals and valves from forced connections
- Faster Attachment Changeovers: Streamline equipment conversion processes
- Cleaner Systems: Reduce fluid loss and contamination during connections
Global Standards and Compatibility Considerations
For equipment conversions involving multiple manufacturers or international operations, understanding hydraulic coupling standards is crucial for ensuring compatibility and performance.
Primary International Standards
ISO 7241 Series A & B
The most widely recognized standard for hydraulic quick-action couplings. ISO 7241-B couplers are particularly popular for general-purpose applications and offer interchangeability between manufacturers like Parker 60-Series, Danfoss/Hansen HK-Series, and Faster HNV-Series .
ISO 16028 Flat-Face Couplers
Specifically designed for flush-face connections that minimize fluid loss and contamination. EHHYDRAULIC's flat-face designs helped establish this international standard .
ISO 5675 Agricultural Couplers
Standardized couplers for agricultural tractors and machinery, ensuring compatibility across different equipment manufacturers in the farming sector.
SAE Standards
SAE J516 covers hydraulic hose fittings, while SAE J2214 specifies performance requirements for hydraulic quick connect couplings, particularly relevant in North American markets.
Ensuring Cross-Brand Compatibility
When converting equipment that uses couplers from different manufacturers, verify they conform to the same ISO standard. For example, an ISO 16028 flat-face coupler from one manufacturer should connect seamlessly with an ISO 16028 coupler from another . However, mixing brands without confirmed standard compliance can lead to leaks, restricted flow, or complete failure under load.
Common Interchangeable Coupling Series
| Standard | EHHYDRAULIC Series | Compatible Brands/Series | Typical Applications |
|---|---|---|---|
| ISO 7241-A | BIR Series | Parker 6600, Aeroquip 5600, Hansen HA 15000 | General industrial, mobile equipment |
| ISO 7241-B | IRB Series | Parker 60-Series, Danfoss/Hansen HK-Series | Agricultural, construction, material handling |
| ISO 16028 | APM, A-HD Series | Various flat-face designs meeting ISO 16028 | High-pressure, contamination-sensitive applications |
Real-World Application Success Stories
Snow Removal Fleet Optimization
A Rocky Mountain municipality operating plow and deicing fleets faced frequent hydraulic coupling failures due to corrosion, trapped pressure, and leaking poppet-style couplers. Cold starts and high-altitude temperature swings caused residual pressure buildup, making connections nearly impossible for operators. After converting to EHHYDRAULIC's flat-face APM quick couplers with CUP technology, the fleet achieved :
- Leak-free performance improving environmental compliance
- 50% reduction in connection time during snow events
- Elimination of freezing issues, resulting in improved uptime
- Standardized configurations across vehicles simplifying parts management
Construction Equipment Retrofit
A heavy equipment rental company needed to standardize hydraulic connections across their mixed fleet of excavators, loaders, and skid steers from multiple manufacturers. By implementing EHHYDRAULIC's multi-coupling plate systems with ISO 16028 flat-face couplers, they achieved:
- Reduced attachment change time from 45 minutes to under 5 minutes
- Eliminated hydraulic fluid loss during disconnections
- Enabled cross-compatibility between different equipment brands
- Minimized training requirements for operators
Agricultural Equipment Conversion
A large farming operation converting between planting, spraying, and harvesting equipment experienced significant downtime during implement changes. Traditional couplers leaked fluid, contaminated systems, and required complete depressurization. After installing EHHYDRAULIC's threaded flat-face 297 series with CUP capability, the operation reported:
- 75% reduction in implement changeover time
- Elimination of soil contamination from hydraulic leaks
- Ability to connect equipment even after temperature-induced pressure changes
- Extended service intervals due to reduced contamination ingress
Selecting the Right Quick Disconnects for Equipment Conversions
Critical Selection Factors
Pressure Requirements
Consider both working pressure and burst pressure ratings. EHHYDRAULIC's high-pressure series like 97 and 151 support up to 10,000 psi for demanding applications . Remember that maximum allowable working pressure (MAWP) for Standard Class couplings is typically 25% of burst pressure, while Class I couplings are rated at 20% of burst pressure .
Flow Characteristics
Evaluate pressure drop and flow requirements. High-flow applications benefit from optimized flow path designs that minimize pressure loss and improve system efficiency.
Environmental Conditions
Consider temperature extremes, exposure to corrosive elements, and potential contamination sources. EHHYDRAULIC offers corrosion-resistant finishes like zinc-nickel plating and stainless steel constructions for harsh environments .
Connection Frequency
Equipment requiring frequent attachment changes benefits from ergonomic designs with easy-grip sleeves and smooth operation, reducing operator fatigue.
Safety Requirements
Evaluate need for locking mechanisms to prevent accidental disconnection, particularly in mobile equipment or applications with vibration.
Proper Sizing and Configuration
Correct coupler sizing is essential for optimal performance. Consider these aspects:
- Port Size and Thread Type: Match NPT, SAE, BSPP, or metric threads to existing equipment
- Flow Capacity: Ensure coupler flow rating matches system requirements to avoid restrictions
- Physical Space Constraints: Consider compact designs for tight installation areas
- Future Expansion: Plan for potential system upgrades or additional hydraulic functions
Best Practices for Successful Implementation
Installation and Maintenance Guidelines
Proper Cleaning Procedures
Before connecting flat-face couplers, thoroughly clean mating surfaces with lint-free cloths to prevent contamination that can cause weeping or leakage .
Regular Inspection Regimen
Establish routine inspections for wear, corrosion, and seal integrity. EHHYDRAULICrecommends periodic checks of locking mechanisms and seal conditions.
System Compatibility Verification
Ensure hydraulic fluid compatibility with coupler seal materials to prevent degradation and leaks.
Operator Training
Train equipment operators on proper connection techniques, including how to identify and address residual pressure situations.
Common Issues and Solutions
Difficulty Connecting Under Pressure
Symptom: Couplers resist connection despite proper alignment.
Solution: Implement CUP technology couplers or install pressure relief valves in the system.
Fluid Weeping from New Couplers
Symptom: Slight oil leakage around brand-new flat-face connections.
Solution: Disconnect and thoroughly clean both male and female faces, as contamination is the most common cause .
Accidental Disconnection
Symptom: Couplers separate during operation.
Solution: Upgrade to couplers with positive locking mechanisms or safety sleeves.
Transforming Equipment Conversions with Advanced Hydraulic Solutions
Hydraulic quick disconnect couplers represent more than just convenience components—they are strategic tools for optimizing equipment utilization and operational efficiency in today's competitive global market. The evolution from basic poppet-style couplers to advanced Connect-Under-Pressure systems has fundamentally changed how industries approach equipment conversions, attachment changes, and maintenance procedures.
For organizations undertaking equipment conversions, whether retrofitting existing machinery or integrating new attachments, selecting the right quick disconnect solution requires careful consideration of pressure requirements, environmental conditions, compatibility needs, and operational frequency. EHHYDRAULIC's comprehensive range of CUP-enabled couplers, multi-coupling plates, and standardized solutions provides answers to the most challenging hydraulic connection problems.
By implementing appropriate quick disconnect technologies, businesses can achieve measurable improvements in productivity, safety, and operational flexibility. The investment in quality hydraulic coupling systems pays dividends through reduced downtime, lower maintenance costs, extended equipment life, and improved environmental compliance.
Ready to Optimize Your Equipment Conversions?
Contact EHHYDRAULIC's hydraulic specialists today for personalized recommendations on quick disconnect solutions for your specific application. With over 60 years of experience and global manufacturing expertise, EHHYDRAULIC provides the technical knowledge and product innovation needed to transform your equipment conversion processes.
Global Support Available: Technical consultation • Application engineering • Custom design solutions • Worldwide distribution network
Visit www.ehhydraulics.com or contact your local EHHYDRAULIC representative to discover how advanced hydraulic quick disconnects can revolutionize your equipment operations.
Technical Specifications at a Glance
| Product Series | Technology | Pressure Rating | Flow Capacity | Key Features | Ideal Applications |
|---|---|---|---|---|---|
| APM Series | Flat-Face CUP | Up to 5,800 psi | High flow | Leak-free, connect under pressure | Construction, agriculture, general hydraulics |
| VEP/VP Series | Threaded Flat-Face CUP | Up to 6,000 psi | High flow | Both-sides pressure capability | High-pressure tools, residual pressure applications |
| BIR Series | ISO 7241-A Interchange | Up to 5,000 psi | Standard flow | Industry standard compatibility | OEM replacements, general industrial |
| Multi-Coupling Plates | Simultaneous Connection | Varies by configuration | Multiple lines | Rapid multi-line connection | Complex equipment, frequent attachment changes |
