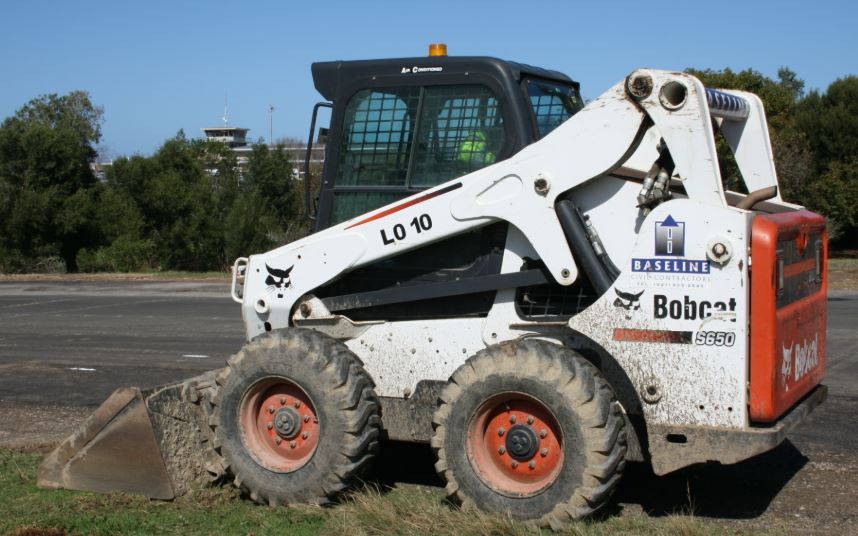

Top 7 Tips for Leaking Bobcat Auxiliary Hydraulic Couplers

Before attempting any repairs, thoroughly clean the coupler area with degreaser and compressed air. Use a flashlight to inspect the exact point of leakage—common spots include the coupler body seal, O-rings, or the connection interface. Misdiagnosing the source leads to wasted time and parts. For hard-to-see areas, apply UV dye to the hydraulic fluid and use a black light to pinpoint the smallest leaks.

O-rings are the most common failure point in hydraulic couplers. Over time, they become brittle, flattened, or damaged by contaminants. Always use manufacturer-specified O-rings (typically Buna-N or Viton material) and ensure they're properly lubricated with clean hydraulic oil before installation. Never reuse old O-rings—even if they look intact, microscopic damage can cause immediate re-leakage.

The poppet valve inside the coupler must seal perfectly against its seat. Inspect for scratches, debris, or wear on both the valve and seat surfaces. Use a soft brush and solvent to remove any dirt or metal particles. If the valve shows signs of pitting or scoring, replacement is necessary. A damaged poppet valve will leak even with new O-rings installed.

Many leaks occur because the coupler isn't fully engaged. Ensure the coupler "clicks" audibly when connected and that the locking sleeve is fully retracted. If the connection feels loose or doesn't lock securely, inspect the coupler's locking mechanism for wear or damage. Never force a connection—this can damage both the coupler and the equipment's hydraulic port.

Physical damage from impacts, corrosion from moisture exposure, or thread damage can all cause leaks. Check the coupler body for cracks, dents, or deep scratches. Inspect threads for stripping or cross-threading. Corroded surfaces prevent proper sealing. If the coupler body shows significant damage, replacement is the only safe option—attempting to repair a cracked coupler is dangerous.

Contaminated hydraulic fluid accelerates seal wear and causes internal damage. Always use the manufacturer-recommended fluid type and viscosity. Before disconnecting couplers, clean the area thoroughly to prevent dirt from entering the system. Use protective caps on disconnected couplers and hydraulic ports. Regular fluid analysis can detect contamination before it causes major issues.

Schedule routine inspections of all hydraulic couplers during regular service intervals. Check for early signs of wear, minor leaks, or loose connections. Replace O-rings proactively every 1-2 years or as recommended by the manufacturer. Keep a maintenance log to track service dates and identify recurring issues. Preventative maintenance costs far less than emergency repairs and downtime.
