62 Series
Standard Female Coupling With Safety Sleeve (Steel)
Poppet Valve
This EH series is interchangeable with FASTER SV SERIES. Steel Product. Standard female couplings very similar to 66 series but equipped with an additional safety sleeve to prevent accidental disconnections. Poppet valve.
Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||

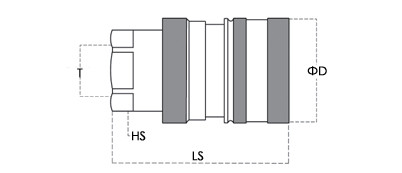

| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
HFSFC6214- G1/4'' | 1/4'' | 50 | 27 | S24 | BSPP 1/4" FEMALE |
HFSFC6214- G1/2'' | 1/2'' | 66 | 38 | S27 | BSPP 1/2"
FEMALE |
