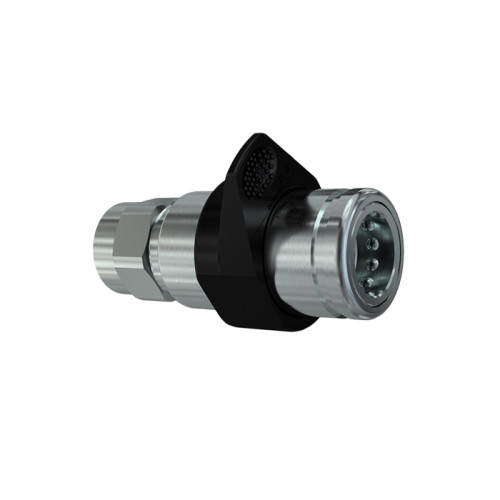

EH 179 Series - 3NV 3CNV Female Couplings For Agriculture With Sleeve-Retraction Facilitator (Steel)
Item specifics
- Interchange
- FASTER 3NV SERIES
- Interchange
- FASTER 3CNV SERIES
Review
Description
This EH series is interchangeable with the FASTER 3NV SERIES and FASTER 3CNV SERIES. Steel Product. Female couplings connectable with the male part under residual pressure. A sleeve retraction mechanism facilitates easier engagement and disconnection. They are interchangeable according to the ISO 7241-1A standard.
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | LS(mm) | D(mm) | HS(mm) | T |
| HFSFC17912-3/4''-16UNF-ORB | 1/2'' | 100 | 48 | S27 | 3/4"-16 UNF FEMALE ORB |
| HFSMC17912-7/8''-14UNF | 1/2'' | 102.6 | 48 | S32 | 7/8"-14 UNF MALE |
HFSFC17912-M22X1.5 | 1/2'' | 89 | 48 | S27 | M22x1,5 MALE |
HFSFC17912-13/16''-16UN-BULKHEAD-ORFS | 1/2'' | 109 | 48 | S27 | 13/16"-16 UN MALE BULKHEAD ORFS |
HFSFC17912-M22X1.5-BULKHEAD-15L | 1/2'' | 100 | 48 | S27 | M22x1.5 MALE BULKHEAD SHORT 15L |
