186 Series

Screw-To-Connect Coupling, Metal To Metal Seal (Steel)

Poppet Valve

This EH series is interchangeable with the FASTER VVM SERIES. Steel Product. VVM couplings feature a screw-to-connect sleeve and a metal-to-metal sealing mechanism upon disconnection. They utilize a poppet valve for positive shut-off.

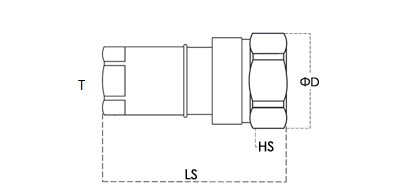

Female

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Ls(mm)	D(mm)	HS(mm)	T
HFSFC18638-G3/8	3/8''	74	38	S24	BSPP 3/8" FEMALE

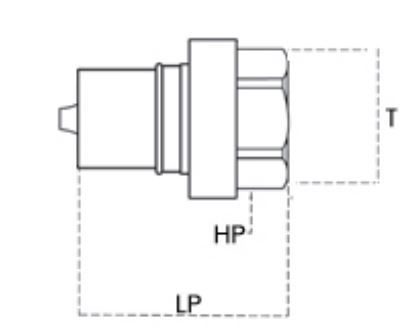

Male

Other Threads/Fitting Ends Are Available Upon Request
Art. No.	Body Size (inch)	Lp(mm)	HP(mm)	T
HFSFP18638-G3/8	3/8''	40.5	S24	BSPP 3/8" FEMALE

Accessories

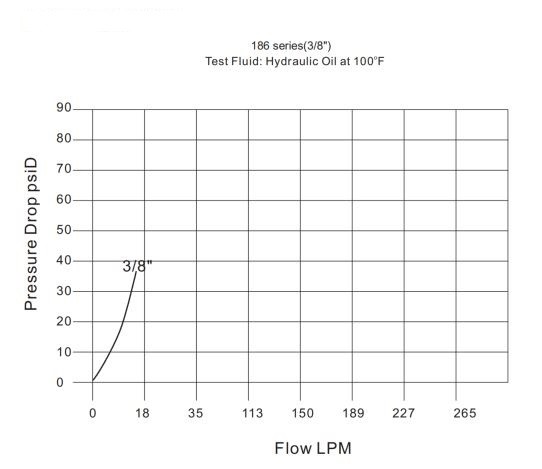

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
06	3/8''	430	430	430	1300	1400	2100	2

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Series Interchange:	FASTER VVM SERIES
	Valve Type:	Poppet
	Connection:	Screw to Connect
	Disconnection:	Unscrew to Disconnect
	Connection Under Pressure:	Not Allowed
