EH 294 Series - PARKER Equivalent SensoControl Test Points (Steel)
Item specifics
- Interchange
- PARKER SensoControl Test Points
Review
Description

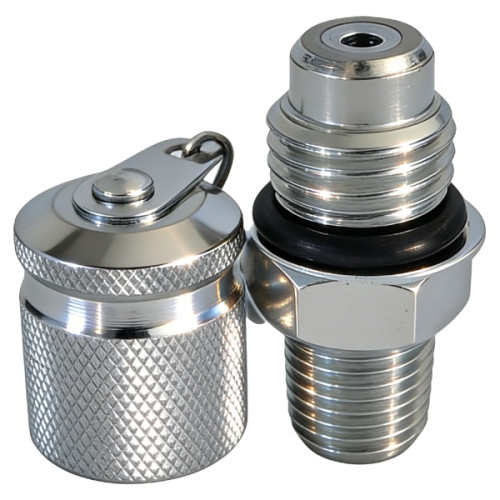

This EH series is interchangeable with the PARKER SensoControl Test Points. Steel Product. EMA couplings serve as diagnostic test points for Parker SensoControl® equipment and mechanical gauges. Designed for permanent installation at key monitoring locations, they feature a pressure cap to prevent damage and contamination. Their proven twist-to-connect design allows for safe connection under pressure. Compact and compatible with high-pressure hoses, EMA test points offer flexible installation in fluid systems.
SensorControl Test Points
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Wrench Flats | Interface Thread Size | Overall Length (in) | Weight (lbs) | End Thread Size |
| HFSFC29418-1/8"NPT | 1/8'' | 17mm | M16x2 | 1.81 | 0.15 | 1/8" NPT Male |
HFSFC29418-1/4"NPT | 1/8'' | 17mm | M16x2 | 1.98 | 0.16 | 1/4" NPT Male |
HFSFC29418-7/16UNF | 1/8'' | 17mm | M16x2 | 1.88 | 0.15 | 7/16-20UNF Male |
HFSFC29418-9/16UNF | 1/8'' | 19mm | M16x2 | 1.88 | 0.17 | 9/16-18UNF Male |
HFSFC29418-M8x1 | 1/8'' | 17mm | M16x2 | 1.81 | 0.15 | M8x1 Male |
HFSFC29418-M10x1 | 1/8'' | 17mm | M16x2 | 1.85 | 0.15 | M10x1 Male |
HFSFC29418-M12x1.5 | 1/8'' | 17mm | M16x2 | 1.94 | 0.16 | M12x1.5 Male |
HFSFC29418-M14x1.5 | 1/8'' | 19mm | M16x2 | 1.94 | 0.16 | M14x1.5 Male |
HFSFC29418-G1/8 | 1/8'' | 19mm | M16x2 | 1.77 | 0.15 | G1/8 Male |
HFSFC29418-G1/4 | 1/8'' | 19mm | M16x2 | 1.94 | 0.16 | G1/4 Male |
HFSFC29418-G3/8 | 1/8'' | 21mm | M16x2 | 1.94 | 0.16 | G3/8 Male |
Test Coupler-Accessories

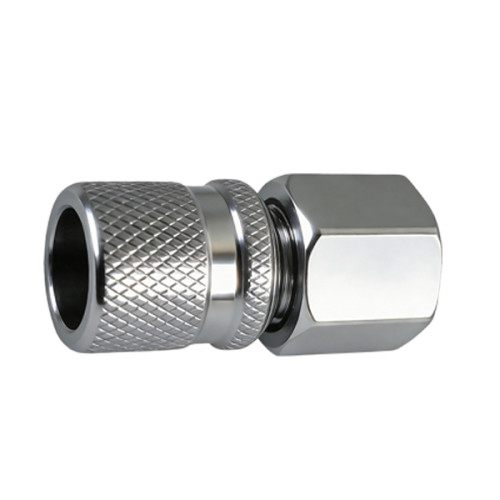

| EMA Gauge Adaptor | ||||||
| Art. No. | Body Size (inch) | Wrench Flats | Interface Thread Size | Overall Length (in) | Weight (lbs) | End Thread Size |
| HFSFC39418-1/4"NPT | 1/8'' | 19mm | M16x2 | 2.22 | 0.15 | 1/4" NPT Female |
| EMA Gauge Adaptor | ||||||
| Art. No. | Body Size (inch) | Wrench Flats | Interface Thread Size | Overall Length (in) | Weight (lbs) | End Thread Size |
| HFSFC49418-1/4"NPT | 1/8'' | 19mm | M16x2 | 2.22 | 0.18 | 1/4" NPT Female |
HFSFC49418-7/16UNF | 1/8'' | 19mm | M16x2 | 1.6 | / | 7/16-20UNF Female |

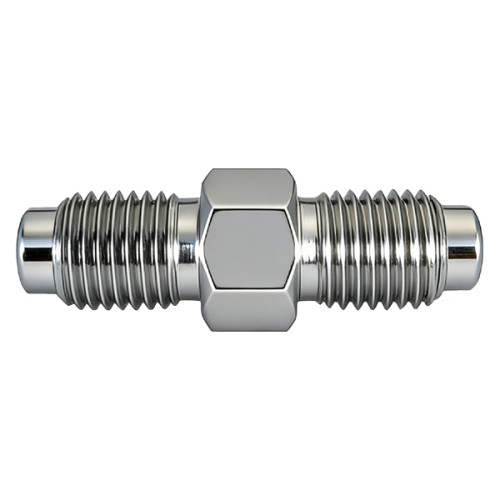

| Union | ||||||
| Art. No. | Body Size (inch) | Wrench Flats | Interface Thread Size | Overall Length (in) | Weight (lbs) | End Thread Size |
| HFSFC59418-M16x2 | 1/8'' | 17mm | M16x2 | 1.65 | 0.11 | M16x2 |
| Transducer Adaptors | ||||||
| Art. No. | Body Size (inch) | Wrench Flats | Interface Thread Size | Overall Length | Weight (lbs) | End Thread Size |
| HFSFC69418-G1/4 | 1/8'' | 27mm | M16x2 | 32mm | 0.3 | 1/4-19 BSPP |
HFSFC69418-G1/2 | 1/8'' | 27mm | M16x2 | 36mm | 0.3 | 1/2-14 BSPP |

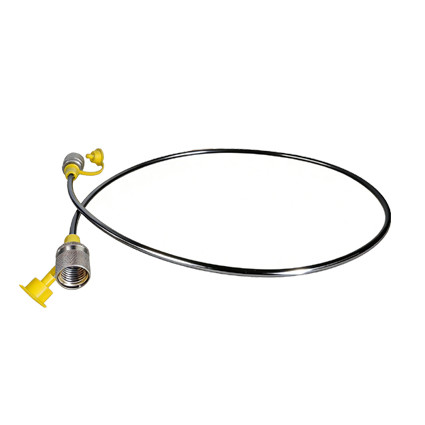

| Flexible Hose | |||
| Art. No. | Length (in) | Length (mm) | Thread Size |
| HFSFC79418-200 | 7.9 | 200 | M16x2 |
HFSFC79418-400 | 15.75 | 400 | M16x2 |
HFSFC79418-800 | 31.5 | 800 | M16x2 |
HFSFC79418-1000 | 39.38 | 1000 | M16x2 |
HFSFC79418-2000 | 78.75 | 2000 | M16x2 |
HFSFC79418-3000 | 157.5 | 4000 | M16x2 |
| Hose Assembly | |||
| Art. No. | Length (in) | Length (mm) | Coupling |
| HFSFC9418-19 | 19 | 483 | PD (EH 94 series) |
HFSFC9418-32 | 32 | 813 | PD (EH 94 series) |
HFSFC9418-120 | 120 | 3048 | PD (EH 94 series) |
HFSFC9418-240 | 240 | 6096 | PD (EH 94 series) |
