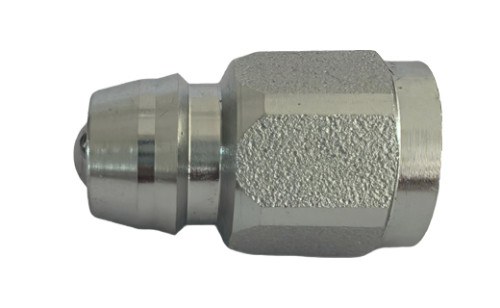

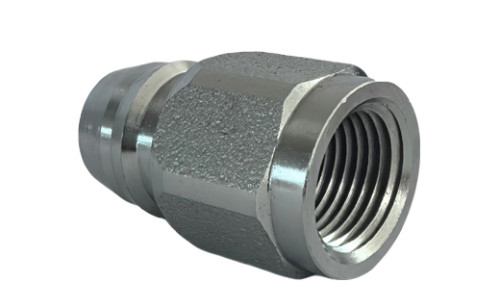

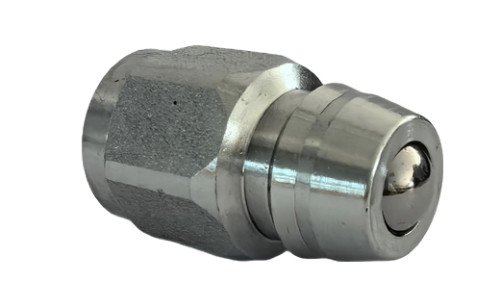

EH 310 Series - RE11447 John Deere Quick Connect Coupler (Steel)

Item specifics

Interchange: RE11447 John Deere Quick Connect Coupler

Interchange: 5060-4 1/2NPTF Parker

Review

Description

Items

Specs

Applications

This EH series is interchangeable with RE-11447 John Deere, HFSFC30312-FC4 fits John Deere AR47331sleeve-type female bodies, has durable chrome alloy precision ball valve.Induction hardened at the locking broove to minimize brinelling.and zinc palted for corrosion protection

RE: HFSFC30312-FC4--MINI STOCK--500PCS

REMARK: PER ORDER MINI TOTAL AMOUNT USD1000.00

SHIPMENT: YOUR ORDER QTY LESS MINI STOCK,WITHIN 7 DAYS AFTER RECEIVING YOUR PAYMENT.

Female Coupler

Other Threads/Fitting Ends Are Available Upon Request
John Deere Art. No.	Body Size (inch)	Lp(mm)	Hs(mm)	D(mm)	EH Art. No.
RE-11447	1/2''	46	S27	29.5	HFSFP31012-FC4

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
06	3/8''	350	/	/	1250	/	/	0.01
08	1/2''	350	350	350	1250	1250	1250	0.01
12	3/4''	350	350	350	1250	1250	1250	0.02

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CrIII) & MATE 1000 (ZnNi)
Specifications:	Market Interchange	Faster 4BD4FH Spare Part Kit Faster 4BD4FH Accessories
	Valve Type:	Flat
	Connection:	Push to Connect
	Disconnection:	Sleeve Retraction
	Connection Under Pressure:	Allowed Both Halves up to W.P.
