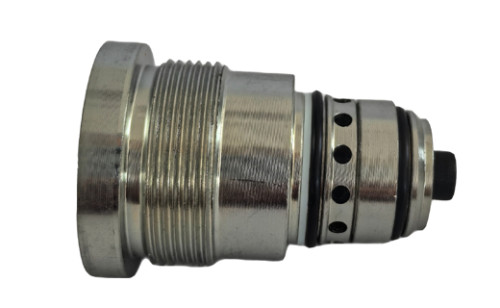

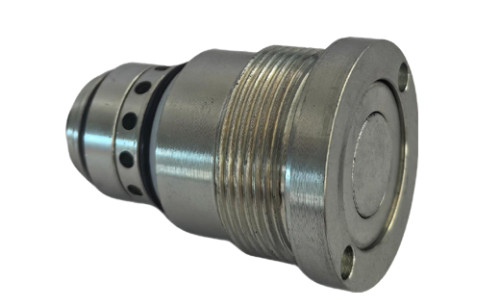

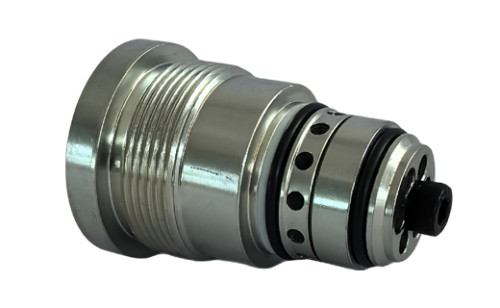

EH 192 Series - AXE225671 /AXE60983 John Deere Quick Disconnect (Steel)

Item specifics

This EH series is interchangeable with these repair and replace indicidual components on the John Deere , combine single point Muti-couplings.

Direct identical replacement for OEM equipment

Cartridge to service both the header and combine coupling sides.

Available in 1/2" body only

RE: HFSFC19212--MINI STOCK--500PCS

PER ORDER MINI TOTAL AMOUNT USD1000.00

SHIPMENT:YOUR ORDER QTY LESS MINI STOCK,WITHIN 7 DAYS AFTER RECEIVING YOUR PAYMENT.

Other Threads/Fitting Ends Are Available Upon Request

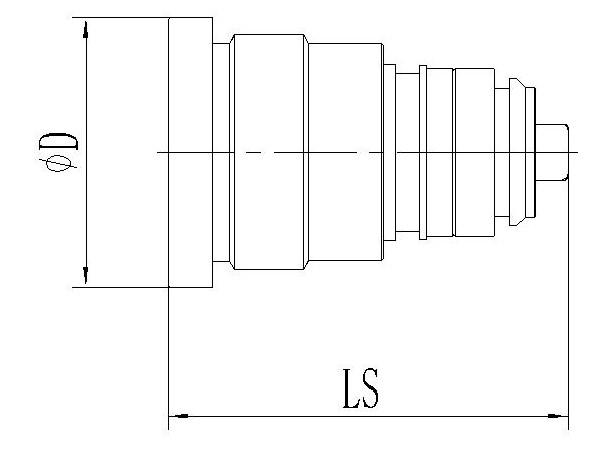

JOHN DEERE Art No.	Body Size (inch)	LS(mm)	D(mm)	EH Art.No.
AH225671 AXE60983	1/2''	58.5	39.5	HFSFC19212

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
08	1/2''	200	/	/	800	/	/	/

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Market Interchange	RE577560 John Deere SCV Breakaway Quick Coupler
	Valve Type:	/
	Connection:	Fit Inside The Machine To Lock In Place
	Disconnection:	Remove From The Machine When Powered Off
	Connection Under Pressure:	Not Allowed
