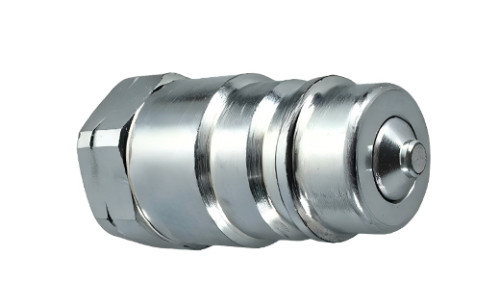

EH 318 Series - 395149R1/395151R1 CASE IH Quick Disconnect (Steel)

Item specifics

Interchange: 395149R1 CASE IH Quick Disconnect (Steel)

Interchange: 5077-16 Parker

Interchange: 5077-4 Parker

Review

Description

Items

Specs

This EH series is interchangeable with the 395149R1,395151RI CASE IH Quick Disconnect, Steel Product. HFSFP31812-FC4 fits I-H395150-R1 (gold style) coupling, positive sealing poppet valve,heat treated and zinc plated for resistance to wear and corrosion. HFSFP31812-FE7 also fitsI-H395150-R1 (see HFSFP31812-FC4) , but has 7/8-14 O-ring boss thread, notched hex for easy identification.

RE: HFSFP31812-FC4--MINI STOCK--500PCS

HFSFP31812-FE7--MINI STOCK--500PCS

REMARK: PER ORDER MINI TOTAL AMOUNT USD1000.00

SHIPMENT: YOUR ORDER QTY LESS MINI STOCK,WITHIN 7 DAYS AFTER RECEIVING YOUR PAYMENT.

Female Quick Coupler

Other Threads/Fitting Ends Are Available Upon Request

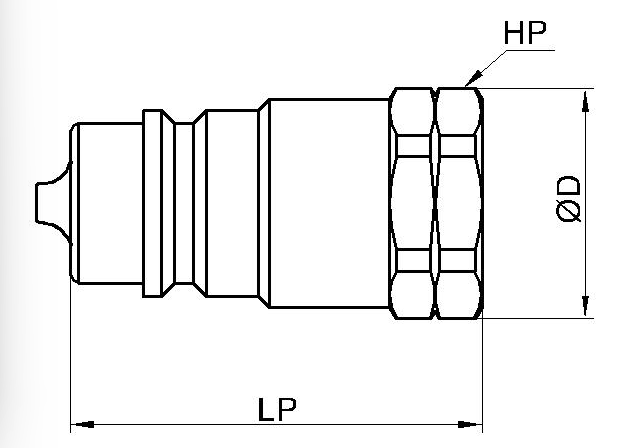

CASE Art. No.	Body Size (inch)	LP(mm)	D(mm)	HP(mm)	EH Art.No.
395151RI	1/2''	52.5	29.5	S27	HFSFP31812-FC4
395149R1	1/2''	52.5	29.5	S27	HFSFP31812-FE7

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
08	1/2''	200	/	/	800	/	/	/

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Market Interchange	RE577560 John Deere SCV Breakaway Quick Coupler
	Valve Type:	/
	Connection:	Fit Inside The Machine To Lock In Place
	Disconnection:	Remove From The Machine When Powered Off
	Connection Under Pressure:	Not Allowed
