This EH series is interchangeable with STUCCHI VD SERIES, FASTER CVV SERIES, VOSWINKEL HS SERIES, DNP PVV3 SERIES, DIXON CVV SERIES, and GROMELLE 626-A SERIES. Steel Product. General-purpose screw-on couplings designed for reliable performance under residual pressure conditions. Engineered to withstand high-pressure impulses and flow surges while maintaining ISO 14541 interchangeability.
This EH series is interchangeable with PARKER 3000 SERIES, STUCCHI IV-HP SERIES, FASTER PVSM SERIES, CEJN 232 SERIES, DIXON T SERIES, DNP PVS SERIES, HANSEN WA56000 SERIES, and SAFEWAY S30 SERIES. Steel Product. These screw-to-connect couplings are engineered for ultra-high-pressure applications. Featuring a durable metal-to-metal sealing ball valve, these ISO 14540-compliant couplings deliver exceptional performance in demanding hydraulic systems.
This EH series is interchangeable with DNP PVVX SERIES, FASTER CVV SERIES, and VOSWINKEL HS-VA SERIES. Stainless Steel Product. General-purpose screw couplings designed for reliable operation under residual pressure conditions. Engineered to withstand high-pressure surges and flow impulses while maintaining ISO 14541 interchangeability.
This EH series is interchangeable with the FASTER CFPV SERIES. Steel Product. This ISO 7241-1-A compliant series is designed for direct threading into valve ports or rigid pipe systems. It incorporates a safety breakaway feature that prevents hose rupture during accidental snagging—such as from tractor movement—by cleanly separating at the male coupling, ensuring safe and environmentally responsible operation.
This EH series is interchangeable with the FASTER 6DNPV SERIES. Steel Product. Compliant with ISO 7241-1A, this series can be screwed directly into valve ports or rigid piping. It features a breakaway safety function: under excessive force, such as unintentional tractor pull, the coupling halves disconnect cleanly to prevent hose rupture and environmental spills. The male half can get manually disconnected under residual pressure up to 250 bar.
This EH series is interchangeable with the FASTER VVM SERIES. Steel Product. VVM couplings feature a screw-to-connect sleeve and a metal-to-metal sealing mechanism upon disconnection. They utilize a poppet valve for positive shut-off.

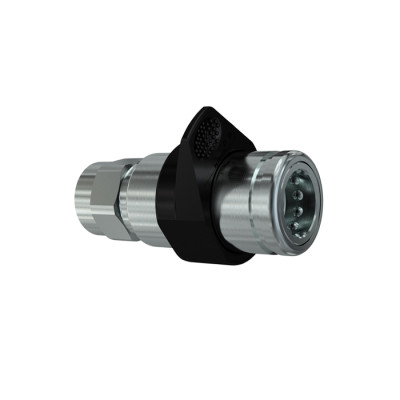

This EH series is interchangeable with the FASTER 3NV SERIES and FASTER 3CNV SERIES. Steel Product. Female couplings connectable with the male part under residual pressure. A sleeve retraction mechanism facilitates easier engagement and disconnection. They are interchangeable according to the ISO 7241-1A standard.
