hydraulic quick coupling types

This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL SERIES, DNP PNV1 SERIES, DNP PNO1 SERIES and STUCCHI SH SERIES. Steel Product. 105 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 106 parts (free flow) same series. Carbon Steel.

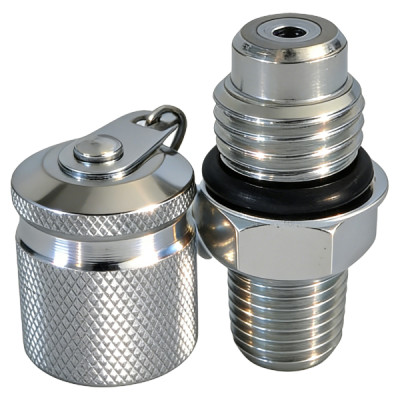

This EH series is interchangeable with PARKER PD SERIES, DIXON PD SERIES, DNP PLD3 SERIES, FASTER DF SERIES, EATON AEROQUIP FD90 SERIES, BRAZIL DYNAMIC DIAGOSTICO SERIES, and HOLMBURY DTP SERIES. Steel Product. Hydraulic pressure measurement couplings featuring ISO 15171-1 compliant flat-face connections. The male component installs directly on hydraulic lines while the female interface connects to gauge instrumentation, enabling precise system pressure monitoring without fluid loss during connection/disconnection.

This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBV1 SERIES, STUCCHI IRB SERIES, HANSEN HK SERIES, SAFEWAY S10 SERIES, VOSWINKEL IB SERIES, and GROMELLE 635-A SERIES. Steel Product. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8" to 2" with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.

This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBV1 SERIES, STUCCHI IRB SERIES, HANSEN HK SERIES, SAFEWAY S10 SERIES, VOSWINKEL IB SERIES, and GROMELLE 635-A SERIES. Steel Product. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8" to 2" with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.

This EH series is interchangeable with the FASTER 6DNPV SERIES. Steel Product. Compliant with ISO 7241-1A, this series can be screwed directly into valve ports or rigid piping. It features a breakaway safety function: under excessive force, such as unintentional tractor pull, the coupling halves disconnect cleanly to prevent hose rupture and environmental spills. The male half can get manually disconnected under residual pressure up to 250 bar.

This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL SERIES, DNP PNVX SERIES, DNP PNOX SERIES and STUCCHI SH SERIES. Stainless Steel Product. 103 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 104 parts (free flow) same series. AISI SS316 Material.

This EH series is interchangeable with STUCCHI VR SERIES, FASTER FLV SERIES, VOSWINKEL RH SERIES, VOSWINKEL RK SERIES, and DNP PRH3 SERIES. Steel Product. The 64 Series German Screw Coupler features a low-leakage valve for sealing and threaded connections, enabling secure mating even under residual pressure. Its robust construction makes it ideal for demanding applications, including mobile construction and industrial hydraulics.

This EH series is interchangeable with STUCCHI APM SERIES, PARKER FEC SERIES, FASTER 3FFH SERIES, FASTER 3FFI SERIES, DIXON HTE SERIES, CEJN X64 SERIES, DNP PLK4 SERIES, SAFEWAY FFEC49 SERIES, and VOSWINKEL FU SERIES. Steel Product. These ISO 16028-compliant flat face couplings are engineered for demanding hydraulic applications, featuring a robust 35 MPa (5076 psi) working pressure rating and durable zinc-nickel plating for superior corrosion resistance. The innovative design allows safe connection under residual pressure conditions with multiple configuration options.

This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBVM SERIES, STUCCHI IRBO SERIES, HANSEN HK SERIES, SAFEWAY BS10 SERIES, VOSWINKEL IB-MS SERIES, and GROMELLE 635-L SERIES. Brass Product. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8" to 2" with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.

This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL BRASS SERIES and STUCCHI SH SERIES. Brass Product. 101 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 107 parts (free flow) same series. Brass.
