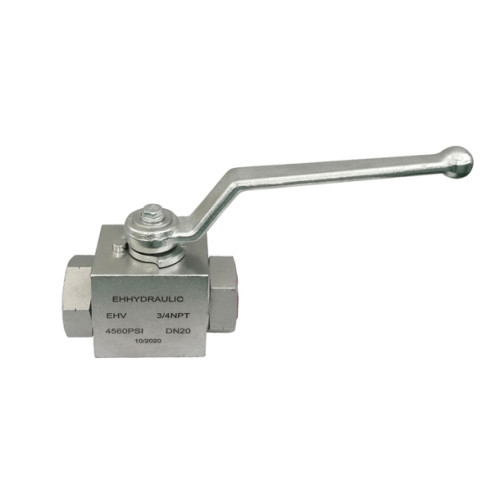

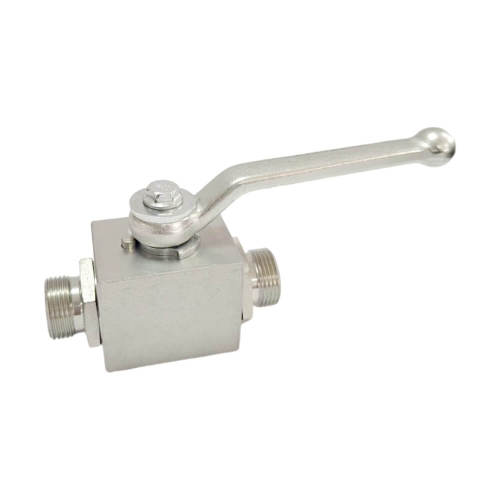

EHV Series
Two-Way High-Pressure Ball Valve (Steel)
This EH series is interchangeable with PISTER BKH SERIES, MHA BKH SERIES, HYDAC KHB SERIES, HYDAC KHM SERIES, CIOCCA CRHI2 SERIES, and GEMELS GE2 SERIES. Steel Product. Two-way high-pressure ball valve (STEEL), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||||
| Art. No. | Body Size (Inch) | DN | L1(mm) | L2(mm) | L3(mm) | H(mm) | G(mm) | L4(mm) | L5(mm) | L6(mm) | T |
EHV18 | 1/8'' | 4 | 69 | 40 | 154.1 | 73 | 4.5 | 26 | 26 | 33 | 1/8''
BSPP(NPT) |
EHV14 | 1/4'' | 6 | 69 | 40 | 145 | 71 | 4.5 | 26 | 26 | 33 | 1/4'' BSPP(NPT) |
EHV38 | 3/8'' | 10 | 71 | 42 | 145 | 76.5 | 6.5 | 32 | 33 | 38 | 3/8'' BSPP(NPT) |
EHV12 | 1/2'' | 13 | 82 | 48 | 161 | 81 | 6.5 | 37.5 | 36 | 40 | 1/2'' BSPP(NPT) |
EHV34 | 3/4'' | 20 | 96 | 62 | 218 | 112 | 6.5 | 45 | 49 | 57 | 3/4'' BSPP(NPT) |
EHV10 | 1'' | 25 | 113 | 66 | 226.5 | 120 | 6.5 | 55 | 58 | 65 | 1'' BSPP(NPT) |
EHV10-114 | 1'' | 25 | 120 | 66 | 229.8 | 120 | 6.5 | 55 | 58 | 65 | 1-1/4''
BSPP(NPT) |
EHV10-112 | 1'' | 25 | 130 | 66 | 234.8 | 120 | 6.5 | 55 | 58 | 65 | 1-1/2''
BSPP(NPT) |
EHV114 | 1-1/4'' | 32 | 120 | 80 | 295 | 170 | / | / | 82 | 87 | 1-1/4''
BSPP(NPT) |
EHV112 | 1-1/2'' | 38 | 130 | 85 | 305 | 174.5 | / | / | 93 | 99 | 1-1/2''
BSPP(NPT) |
EHV20 | 2'' | 48 | 140 | 100 | 305 | 197 | / | / | 110 | 115 | 2''
BSPP(NPT) |
Thread Size
| Art. No. | DN(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
EHV18-G1/8 | 4 | G1/8 | / | 69 | 10 | 22 |
| EHV14-G1/4 | 6 | G1/4 | / | 69 | 13.5 | 22 |
| EHV38-G3/8 | 10 | G3/8 | / | 71 | 14 | 27 |
EHV12-G1/2 | 13 | G1/2 | / | 82 | 16.5 | 30 |
EHV34-G3/4 | 20 | G3/4 | / | 95 | 18 | 41 |
EHV10-G1 | 25 | G1 | / | 113 | 20 | 50 |
EHV10-G11/4 | 25 | G1 | / | 120 | 22 | 50 |
EHV10-G11/2 | 25 | G1 | / | 129 | 25 | 60 |
EHV114-G11/4 | 32 | G114 | / | 120 | 29 | 60 |
EHV112-G11/2 | 38 | G112 | / | 130 | 28 | 70 |
EHV20-G2 | 48 | G2 | / | 140 | 29 | 85 |
| Art. No. | DN(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
EHV18-1/8NPT | 4 | 1/8NPT | / | 69 | 10.5 | 22 |
| EHV14-1/4NPT | 6 | 1/4NPT | / | 69 | 15 | 22 |
| EHV38-3/8NPT | 10 | 3/8NPT | / | 71 | 15.5 | 27 |
EHV12-1/2NPT | 13 | 1/2NPT | / | 82 | 17 | 30 |
EHV34-3/4NPT | 20 | 3/4NPT | / | 95 | 20.5 | 41 |
EHV10-1NPT | 25 | 1NPT | / | 113 | 25 | 50 |
EHV10-11/4NPT | 25 | 1-1/4NPT | / | 120 | 22 | 50 |
EHV10-11/2NPT | 25 | 1-1/2NPT | / | 129 | 22 | 60 |
EHV114-11/4NPT | 32 | 1-1/4NPT | / | 120 | 29 | 60 |
EHV112-11/2NPT | 38 | 1-1/2NPT | / | 130 | 30 | 70 |
EHV20-2NPT | 48 | 2NPT | / | 140 | 30 | 85 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-10S | M18X1.5 | 10 | 73 | 12 | 22 |
| EHV-12S | M20X1.5 | 12 | 77 | 12 | 27 |
EHV-16S | M24X1.5 | 16 | 87 | 14 | 30 |
EHV-20S | M30X2 | 20 | 91 | 16 | 32 |
EHV-25S | M36X2 | 25 | 111 | 18 | 41 |
EHV-30S | M42X2 | 30 | 120 | 20 | 50 |
EHV-38S | M52X2 | 38 | 141 | 22 | 60 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-8L | M14X1.5 | 8 | 69 | 10 | 22 |
| EHV-10L | M16X1.5 | 10 | 77 | 11 | 27 |
EHV-12L | M18X1.5 | 12 | 77 | 11 | 27 |
EHV-15L | M22X1.5 | 15 | 83 | 12 | 30 |
EHV-22L | M30X2 | 22 | 103 | 14 | 41 |
EHV-28L | M36X2 | 28 | 107.5 | 14 | 55 |
EHV-35L | M45X2 | 35 | 135 | 16 | 60 |
EHV-42L | M52X2 | 42 | 142 | 16 | 70 |
| Art. No. | DN(mm) | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-SAE4 | 6 | 7/16-20UNF | / | 69 | 14 | 22 |
| EHV-SAE6 | 10 | 9/16-18UNF | / | 71 | 15.5 | 27 |
EHV-SAE8 | 13 | 3/4-16UNF | / | 82 | 18 | 30 |
EHV-SAE12 | 20 | 1-1/16-12UN | / | 101 | 23.5 | 41 |
EHV-SAE16 | 25 | 1-5/16-12UN | / | 113 | 23 | 50 |
EHV-SAE20 | 32 | 1-5/8-12UN | / | 120 | 25 | 60 |
EHV-SAE24 | 40 | 1-7/8-12UN | / | 130 | 25 | 70 |
EHV-SAE32 | 50 | 2-1/2-12UN | / | 140 | 25 | 80 |
