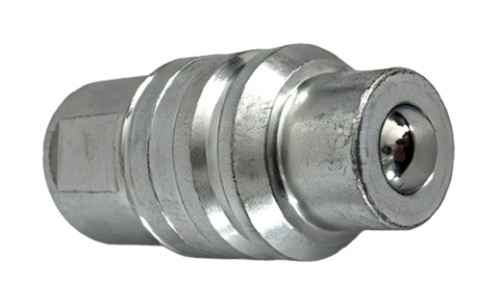

EH 317 Series - CASE IH B91308/ 544787R91 Quick Disconnect (Steel)
Item specifics
- Interchange
- CASE IH B91308 Quick Disconnect (Steel)
- Interchange
- CASE IH 544787R91 Quick Disconnect (Steel)
- Interchange
- Pioneer 5070-4 male tip
- Interchange
- Pioneer 5070-16 male tip
Review
Description
This EH317 series is interchangeable with CASE IH B91308,544787R91,Pioneer 5070-4,5070-16. male tips. HFSFP31712-FC4 fits I-H544787R91 and Pionner 4057-4 female bodies, ball style valving,heat treated and zinc plated for resistance to wear and corrosion. HFSFP31712-FE7 also fits I- H 544788R91 and Pionner 4057-4 female bodies, ball style valving,heat treated and zinc plated for resistance to wear and corrosion. 7/8-14O-ring boss thread.
RE: HFSFC31712-FC4--MINI STOCK--500PCS
HFSFC31712-FE7--MINI STOCK--500PCS
REMARK: PER ORDER MINI TOTAL AMOUNT USD1000.00
SHIPMENT: YOUR ORDER QTY LESS MINI STOCK,WITHIN 7 DAYS AFTER RECEIVING YOUR PAYMENT.
Female Quick Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| CASE Art. No. | Body Size (inch) | LP(mm) | D(mm) | HP(mm) | EH Art.No. |
| B91308 | 1/2'' | 67.2 | 31.7 | S25.4 | HFSFP31712-FC4 |
544787R91 | 1/2'' | 67.2 | 31.7 | S25.4 | HFSFP31712-FE7 |
