EH 318 Series - CASE IH 395149R1/395151R1 Quick Disconnect (Steel)
Item specifics
- Interchange
- CASE IH 395149R1 Quick Disconnect (Steel)
- Interchange
- CASE IH395151R1 Quick Disconnect (Steel)
- Interchange
- Pioneer 5077-16 male tip
- Interchange
- Pioneer 5077-4 male tip
Review
Description
This EH318 series is interchangeable with CASE IH 395149R1,395151RI ,Pioneer 5077-16,5077-4 male tips. HFSFP31812-FC4 fits I-H395150-R1 (gold style) coupler, positive sealing poppet valve,heat treated and zinc plated for resistance to wear and corrosion. HFSFP31812-FE7also fits I-H395150-R1 (see HFSFP31812-FC4) , but has 7/8-14 O-ring boss thread, notched hex for easy identification.
RE: HFSFP31812-FC4--MINI STOCK--500PCS
HFSFP31812-FE7--MINI STOCK--500PCS
REMARK: PER ORDER MINI TOTAL AMOUNT USD1000.00
SHIPMENT: YOUR ORDER QTY LESS MINI STOCK,WITHIN 7 DAYS AFTER RECEIVING YOUR PAYMENT.

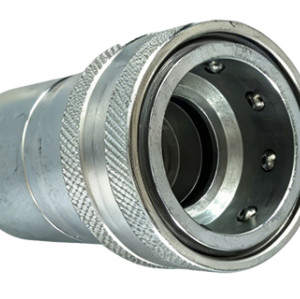

Female Quick Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| CASE Art. No. | Body Size (inch) | LP(mm) | D(mm) | HP(mm) | EH Art.No. |
| 395151RI | 1/2'' | 52.5 | 29.5 | S27 | HFSFP31812-FC4 |
395149R1 | 1/2'' | 52.5 | 29.5 | S27 | HFSFP31812-FE7 |
