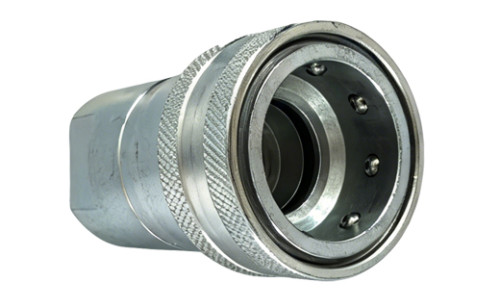

EH 314 Series - 544788R1 CASE IH Quick Disconnect (Steel)

Item specifics

Interchange: 544788R1 CASE IH Quick Disconnect (Steel)

Interchange: 4057-4 Parker

Review

Description

Items

Specs

This EH series is interchangeable with the 544788R91 CASE IH Quick Disconnect, Steel Product. HFSFP31712-FC4 connect with I-H544787R91 and Pionner 5070-4 male tips, has single-acting sleeve,trapped pressure must be released to make connection.Precision ball-check valving,zinc plated.

RE: HFSFC31412-FC4-MINI STOCK--500PCS

REMARK: PER ORDER MINI TOTAL AMOUNT USD1000.00

SHIPMENT: YOUR ORDER QTY LESS MINI STOCK,WITHIN 7 DAYS AFTER RECEIVING YOUR PAYMENT.

Female Quick Coupler

Other Threads/Fitting Ends Are Available Upon Request

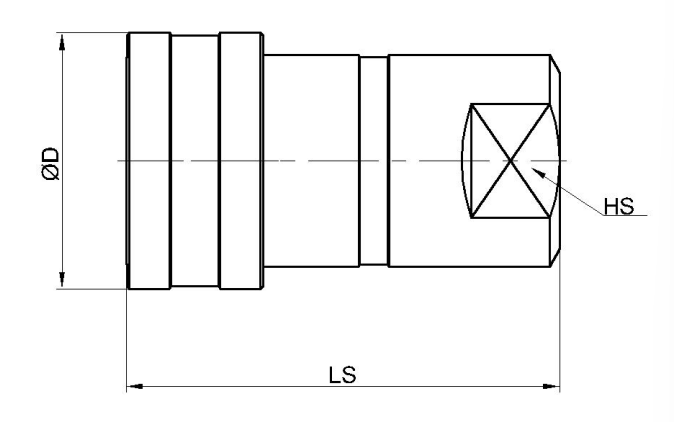

CASE Art. No.	Body Size (inch)	LS(mm)	D(mm)	HP(mm)	EH Art.No.
544788R1	1/2"	78	46	S32	HFSFP31412-FC4

Technical Specifications

Dash Size	Body Size (Inch)	Max. Work PressureMale (bar)	Max. Work PressureFemale (bar)	Max. Work PressureCoupled (bar)	Min. Burst Pressure Male (bar)	Min. Burst Pressure Female (bar)	Min. Burst Pressure Coupled (bar)	Spillage (ml)
08	1/2''	200	/	/	800	/	/	/

Material:	Steel
Seals:	NBR, Seals can be customized to meet your special work condition/media
Working Temperatures:	-25 °C to 125 °C, Customizable
Surface Treatment:	MATE 500 (CRIII)
Specifications:	Market Interchange	RE577560 John Deere SCV Breakaway Quick Coupler
	Valve Type:	/
	Connection:	Fit Inside The Machine To Lock In Place
	Disconnection:	Remove From The Machine When Powered Off
	Connection Under Pressure:	Not Allowed
